Indoor & Outdoor Mobile LED Display
DVW Series
Curve inward up to 12 degrees. Curve outward up to 3 degrees. 1000 nit. 3840Hz for broadcast. The DVW goes where flat panels stop.
Four reasons the DVW handles venues other panels won’t
Twelve degrees of inner curve. IP67 weatherproofing. 3840Hz for broadcast cameras. Built for stages and venues that demand more than a flat wall.
Curved Wall Support: ±12° Inner, ±3° Outer
Each panel adjusts individually to hit the curve angle your set design calls for. Inner curves up to 12 degrees for concave stage backdrops. Outer curves up to 3 degrees for convex wraps. The hardware bends before the budget does.
1000 nit: Holds Up in a Lit Arena
At 1000 nit, the DVW holds up in a fully lit arena during sound check and reads on camera without wash-out. Comparable SMD panels at this pitch deliver 600 to 800 nit. The extra headroom shows.
SMD LED at 3840Hz: Broadcast-Ready
Surface-mounted diodes at 3840Hz refresh. Any camera, any shutter speed, no scan lines in the footage. Broadcast crews stop asking about your spec sheet and start shooting.
IP67 Gaskets & Modular Retrofit
IP67-rated gaskets seal the panel against sustained water exposure. When a module fails in the field, the modular retrofit design lets a technician swap it in place without pulling the whole section down.
DVW 1.9 vs 2.6: distance sets the pitch
Two models cover theater-scale close viewing through large arena distances. Match the pitch to your front-row seat.
Theater & Concerts
DVW 1.9
1.9mm · 320×180 per panel
- Viewing distance: 3-8 metres
- 14-bit grey scale
- 3840Hz, broadcast clean at any shutter
- Curved wall support standard
- IP67 weatherproof
Best for: Theater stages, concert backdrops, broadcast studios, events with cameras
Large Venue
DVW 2.6
2.6mm · 234×132 per panel
- Viewing distance: 8+ metres
- 14-bit grey scale
- 3840Hz refresh rate
- Lower cost per square metre
- IP67 weatherproof
Best for: Arenas, stadiums, large outdoor events, festival stages
Technical Specifications
DVW Series: Full Spec Sheet
Complete technical specifications for both DVW Series indoor/outdoor mobile LED display models.
| Specification | DVW 1.9 | DVW 2.6 |
|---|---|---|
| Pixel Pitch (mm) | 1.9 | 2.6 |
| Panel Size (mm) | 608 × 342 × 80 | 608 × 342 × 80 |
| Pixel Resolution (per panel) | 320 × 180 | 234 × 132 |
| LED Type | SMD | SMD |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum |
| Brightness (nit) | 1000 | 1000 |
| Grey Scale (bit) | 14 | 14 |
| Refresh Rate (Hz) | 3840 | 3840 |
| Inner Curve Support | Up to ±12° | |
| Outer Curve Support | Up to ±3° | |
| IP Rating | IP67 Weatherproof | |
| Installation / Maintenance | Dual-Access & Modular Retrofit | |
| Certification | CE · ETL · FCC |
Why MediaTile
One Partner for the DVW Series: Hardware, Software & Support
MediaTile doesn’t just supply the DVW Series. We spec it, deploy it, connect it to our cloud platform, and support it for the life of the installation.
01
Cloud Content Management
Learn moreSchedule, update, and monitor every DVW panel remotely through MediaTile’s cloud platform, on site or between events, from any browser.
02
AI Content Designer
Learn moreCreate broadcast-ready content at 3840Hz refresh using MediaTile’s drag-and-drop designer with built-in AI generation. Camera-clean output without a dedicated production team.
03
Smart Scheduling
Learn moreAutomate content rotations and event-triggered playlists for stage backdrops and IMAG screens. Set it once and the platform manages the rotation between sets and segments.
04
Audience Analytics
Learn moreMeasure dwell time, engagement, and audience demographics in real time, without storing personal data. Turn a touring LED display into a measurable business asset.
05
Emergency Alert Ready
Learn moreOverride every DVW screen instantly with life-safety messaging via CAP protocol integration. Meets compliance requirements for venues, events, healthcare, and government facilities.
06
In-House Installation & Support
Learn moreOur team specs and supports every DVW deployment, including curved-stage rigging at up to 12 degrees inner and 3 degrees outer curve. Phone and email support included, never outsourced. Hardware financing available through the Corum Digital Advantage Program.
Every DVW connects to MediaTile’s cloud platform. Most event LED suppliers don’t offer that.
Hardware, software, deployment, and support from one team. No handoffs. No finger-pointing when content needs to change an hour before doors open.
- DVW Series panels specified and deployed by our in-house team
- Rated for continuous operation across indoor and outdoor venues
- Managed through MediaTile's cloud platform, manage content from any browser or device
- Professional installation and project management on every job
- Hardware financing via the Corum Digital Advantage Program
- In-house content creation team available on demand
- Unlimited training with every active subscription
- SOC 2 Type II certified platform, zero-findings audit

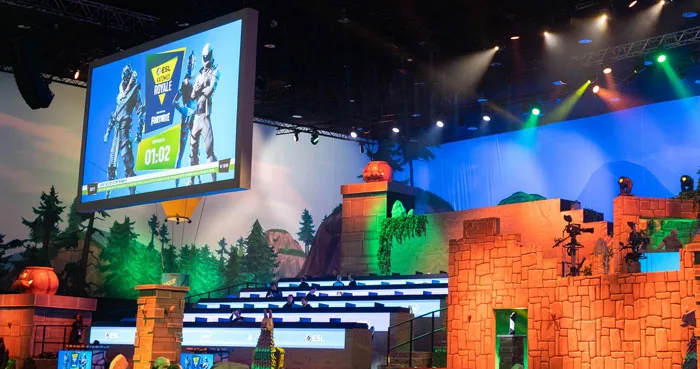

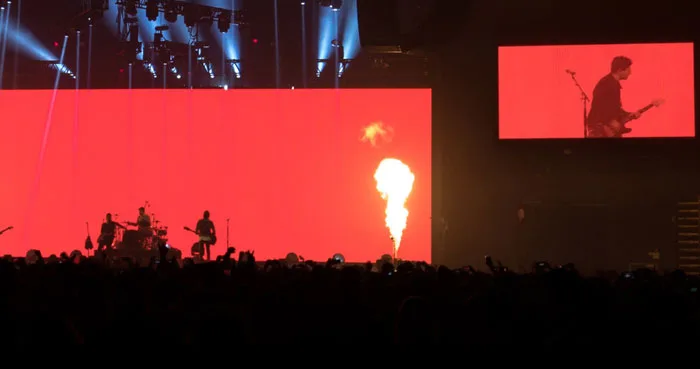

DVW Series in the field
Theaters, concert stages, arenas, and outdoor events running the DVW Series.
Other LED Display Series
MediaTile carries the complete LED lineup. Match the series to your pixel pitch, venue type, and installation needs.
DVR Series
Mobile rental LED display with COB LED, 8kg panels, 600 nit, IP65 front modules, and continuous 90-degree corner wrapping for trade shows and events.
DVNS Series
Outdoor fixed LED display built for permanent exterior installations. High-brightness, weatherproof, and rated for 24/7 outdoor operation.
DVQ Series
COB Flip Chip, 0.78mm to 1.56mm pixel pitch, 3840Hz, common cathode with 30% energy savings. For corporate lobbies, retail, and broadcast.
DVK Series
SMD LED, 1.6mm to 3.2mm, 3500 nit, 16:9 die-cast aluminum cabinets with 90-degree corner capability and front plus rear serviceability.
FAQ
Before you deploy: DVW questions answered
Common questions from event producers, AV integrators, and venue operators evaluating the DVW Series.
What curve angles does the DVW support?
Can the DVW be used outdoors?
Why does 3840Hz matter for live events?
What is modular retrofit and when does it matter?
What’s the difference between DVW 1.9 and DVW 2.6?
How does DVW compare to DVR for event use?
How do I get a quote for the DVW Series?
Ready to deploy the DVW Series?
We’ll spec it, quote it, rig it, and connect it to MediaTile’s cloud platform.
