DVQ Series
Your lobby runs 24/7. The DVQ keeps up. 0.78mm COB Flip Chip LED, 3840Hz refresh rate, front-serviceable, 30% lower energy draw than common anode panels.
Six reasons the DVQ outperforms SMD at close range
COB 1R1G1B Flip Chip LEDs embedded directly into the board. No wire bonding. No single-LED failure cascade. Built for spaces where every pixel is visible.

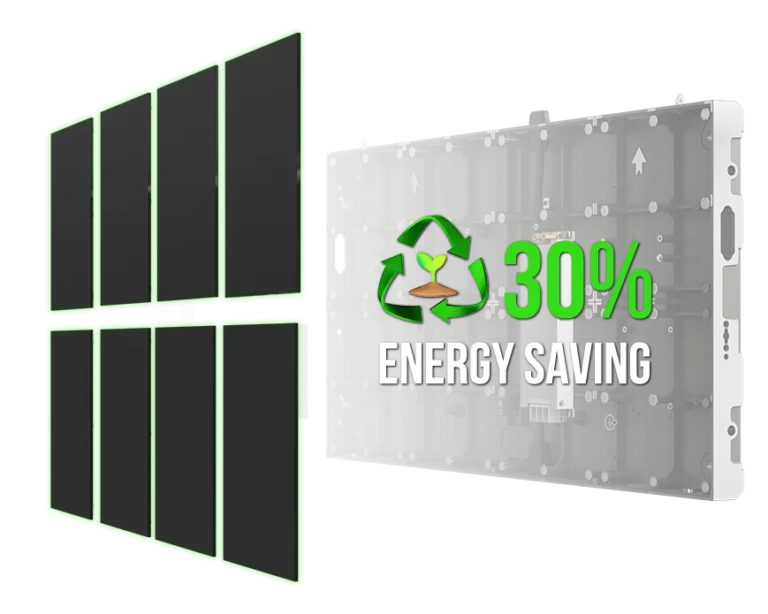

Common Cathode: 30% Energy Savings
Common cathode supplies each RGB channel its own precise voltage, cutting wasted energy in the red channel. Up to 30% lower power draw versus common anode designs at the same brightness. Your electricity bill notices. Your CFO notices more.

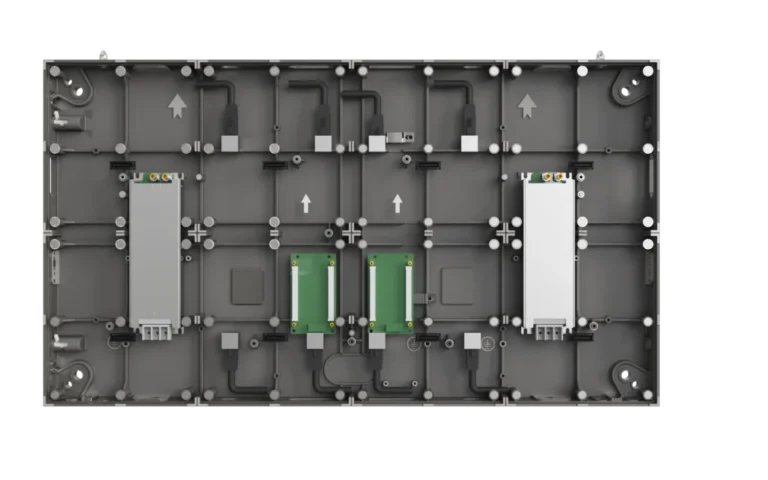

Dual Backup: Power & Signal
Redundant power supply and signal paths. If one fails, the backup takes over instantly. Retail environments cannot afford a blank screen on a Saturday afternoon. The DVQ is built around that constraint.

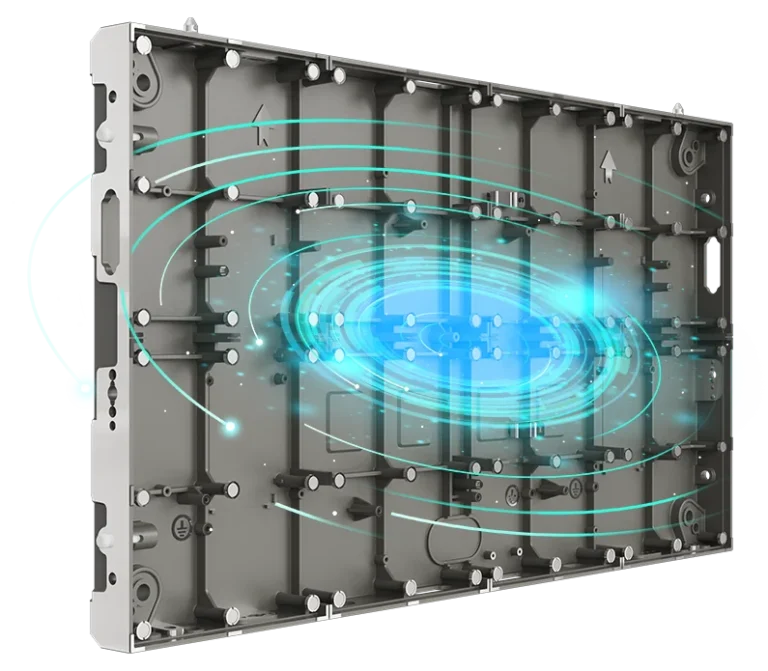

Front-Serviceable Modular Cabinet
Die-cast aluminum cabinet with independent front access to the power supply, HUB board, and receiving card. Service any component without pulling the display from the wall. Zero downtime in live commercial spaces.
COB Technology: 10kg Impact Resistance
COB Flip Chip LEDs bonded directly to the board with no wire connections to snap. Rated to withstand 10kg of impact force. High-traffic lobbies, retail floors, and public spaces test this constantly. The DVQ passes.

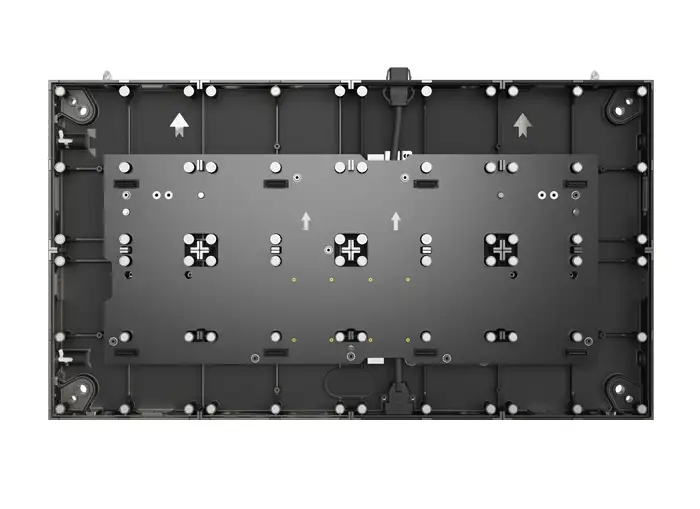

3840Hz Refresh Rate: Camera-Ready
3840Hz eliminates flicker and scan lines when filmed or photographed. Retail environments run cameras constantly. Broadcast studios demand it. At lower refresh rates, you see banding in every shot. At 3840Hz you don’t.

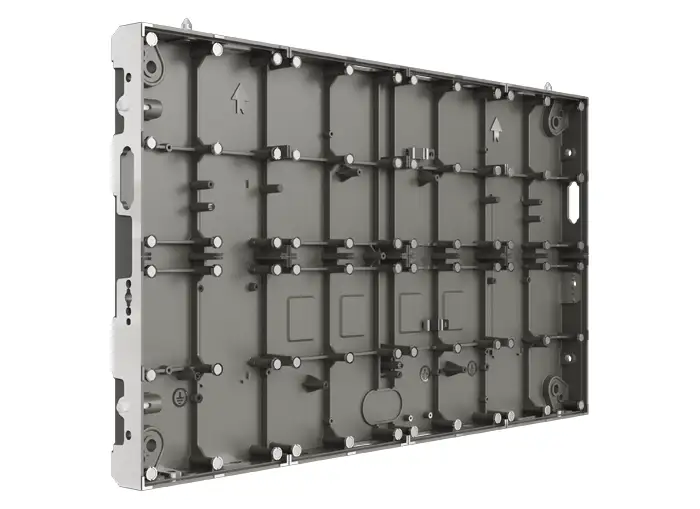

CLASS A EMI: Fits Any AV Environment
The integrated die-cast aluminum cabinet meets CLASS A electromagnetic interference standards. No interference to surrounding systems. Fits into financial services, healthcare, government, and broadcast AV setups without a separate shielding review.
DVQ 0.7 vs 1.2 vs 1.5: which fits your room?
Pixel pitch sets the minimum comfortable viewing distance. Match the pitch to your room, not the other way around.
DVQ 1.5
1.56mm · 384×216 per panel
- Viewing distance: 6–12+ metres
- 13-bit grey scale
- 300 W/m² max power
- 4.5 kg per panel
- COB Flip Chip LEDs
Best for: Auditoriums, arenas, entertainment venues, large retail atria
DVQ 0.7
0.78mm · 768×432 per panel
- Viewing distance: 1–4 metres
- 16-bit grey scale, ultra-smooth gradients
- 320 W/m² max power
- 4.6 kg per panel
- COB Flip Chip LEDs
Best for: Corporate reception, retail feature walls, broadcast studios, command centres
DVQ 1.2
1.25mm · 480×270 per panel
- Viewing distance: 4–8 metres
- 13-bit grey scale
- 260 W/m² max power, most efficient
- 4.5 kg per panel
- COB Flip Chip LEDs
Best for: Boardrooms, conference centres, hotel lobbies, open-plan offices
DVQ Series: Full Spec Sheet
Complete technical specifications for all three DVQ Series indoor fixed LED video wall models.
| Specification | DVQ 0.7 | DVQ 1.2 | DVQ 1.5 |
|---|---|---|---|
| Pixel Pitch (mm) | 0.78 | 1.25 | 1.56 |
| Panel Size (mm) | 600 × 337.5 × 37 | 600 × 337.5 × 37 | 600 × 337.5 × 37 |
| Pixel Resolution (per panel) | 768 × 432 | 480 × 270 | 384 × 216 |
| LED Type | COB 1R1G1B (Flip Chip) | COB 1R1G1B (Flip Chip) | COB 1R1G1B (Flip Chip) |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Weight (kg) | 4.6 | 4.5 | 4.5 |
| Brightness (nit) | 600 | 600 | 600 |
| Grey Scale (bit) | 16 | 13 | 13 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Power Max. (W/m²) | 320 | 260 | 300 |
| Installation / Maintenance | Front | Front | Front |
| EMI Standard | CLASS A | ||
| Power Design | Common Cathode | ||
| Redundancy | Dual Backup: Power & Signal | ||
| Certification | CE · ETL · FCC | ||
Hardware + Software + Support: One Partner
MediaTile doesn’t just supply the DVQ Series. We spec it, install it, connect it to our cloud platform, and support it for the life of the installation.
Cloud Content Management
Schedule, update, and monitor all DVQ displays remotely through MediaTile’s cloud platform. Update content across every screen in seconds from any browser, no on-site visits required.
Learn more →AI Content Designer
Create content purpose-built for high-resolution LED video walls using MediaTile’s drag-and-drop designer with AI content generation. No design team required.
Learn more →Smart Scheduling
Automate content rotations, dayparting, and event-triggered playlists. Set your schedule once and let the platform manage it, across any number of DVQ installations.
Learn more →Audience Analytics
Measure dwell time, engagement, and audience demographics in real time, without storing personal data. Turn your LED video wall into a measurable business asset.
Learn more →Emergency Alert Ready
Override all DVQ screens instantly with life-safety messaging via CAP protocol integration. Meets compliance requirements for healthcare, government, education, and financial institutions.
Learn more →In-House Installation & Support
Our team specs, installs, and supports every DVQ installation. Phone and email support included, never outsourced. Hardware financing available through the Corum Digital Advantage Program.
Learn more →
Every DVQ connects to MediaTile’s cloud platform. Most LED suppliers don’t offer that.
Hardware, software, installation, and support from one team. No handoffs. No finger-pointing when something needs attention.
- DVQ Series panels specified and installed by our in-house team
- Rated for 24/7 continuous commercial operation
- Managed through MediaTile's cloud platform, manage content from any browser
- Professional on-site installation and project management
- Hardware financing via the Corum Digital Advantage Program
- In-house content creation team available on demand
- Unlimited training with every active subscription
- SOC 2 Type II certified platform, zero-findings audit

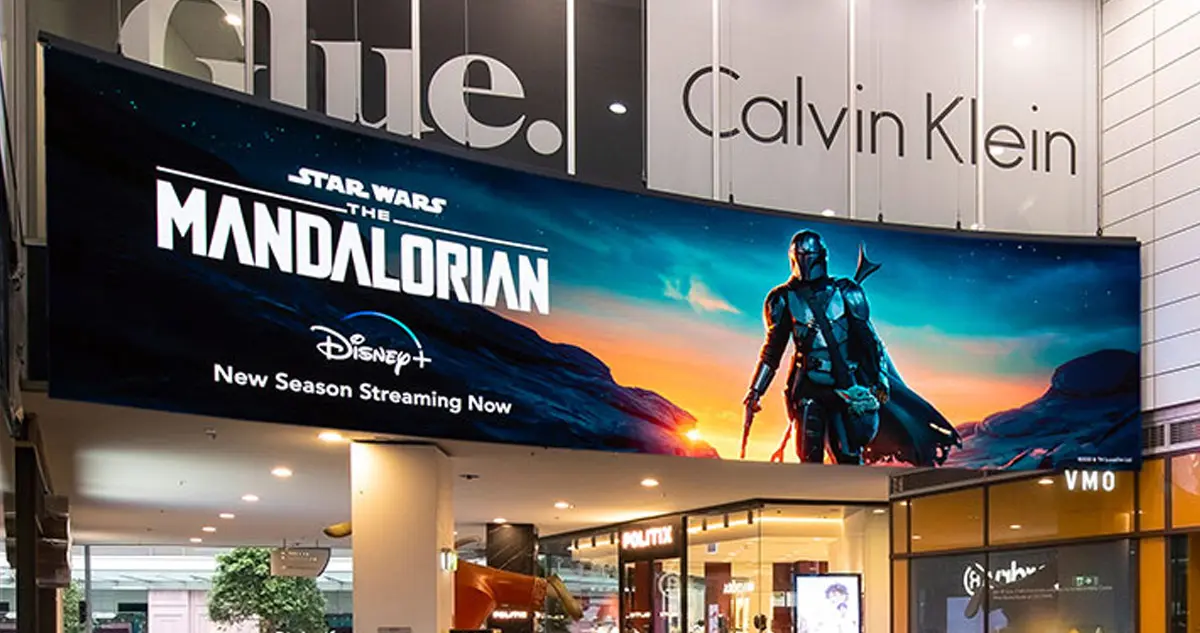

DVQ Series installations
Retail, corporate, broadcast, and entertainment spaces running the DVQ Series.
Other Indoor LED Displays
MediaTile carries the complete indoor fixed LED lineup. Match the series to your pixel pitch, budget, and installation type.
DVY Series
COB Flip Chip, 0.9mm to 1.2mm pixel pitch, 2400 nit, HDR support, and TUV Rheinland eye-comfort certification for premium environments.
Learn More →
DVX Series
1.95mm to 5.95mm pixel pitch, 1200 nit indoor and 4000 nit semi-outdoor. Built for atriums, arenas, hospitality, and large venue applications.
Learn More →
DVK Series
SMD LED, 1.6mm to 3.2mm, 3500 nit, 16:9 diecast aluminum cabinets with 90-degree corner capability and front + rear serviceability.
Learn More →
DVM Transparent Series
Transparent LED panels, 4500 nit, 3940Hz. For retail window displays, glass facades, and architectural installations where sight lines must stay open.
Learn More →Before you buy: DVQ questions answered
Common questions from installers, AV integrators, and facility managers evaluating the DVQ Series.
Ready to install a DVQ Series LED video wall?
We’ll spec it, quote it, install it, and connect it to MediaTile’s cloud platform.
