MediaTile LCD video wall displays: standard, extreme narrow, and razor narrow bezel panels

LCD Video Walls

LCD Video Walls

Five models. Two panel sizes. Bezels from 3.5mm down to 0.8mm razor-thin. Every MediaTile LCD video wall is specified, installed, and supported by our in-house team and managed through MediaTile’s content platform.

5 ModelsProduct Range
46″-55″Panel Sizes
0.8 mmFinest Bezel
700 nitPeak Brightness
24/7Operation Rated
IP5xDust Certified

Standard Bezel LCD Displays

Two panel sizes for large-format commercial video wall installations

The VT series delivers a 3.5mm bezel-to-bezel measurement, 500 nit IPS panels, DisplayPort 1.2 daisy-chain, and 24/7 operation. Available in 46-inch for tighter spaces and 55-inch for large lobbies, conference centres, and open-plan areas. The straightforward choice when bezel width is not the primary specification.

VWK-46VT 46-inch LCD video wall panel, 3/4 angle product view

46 Inch

VWK-46VT

46-inch IPS panel, 3.5mm bezel-to-bezel, 500 nit brightness. The compact format in the VT series. Ideal for meeting rooms, retail displays, and lobby walls where viewing distances are 1.5-5 metres. Lighter at 15.7kg per panel.

  • 46″ IPS
  • 500 nit
  • 3.5mm B2B
  • 178° viewing
  • 24/7
VWK-55VT 55-inch LCD video wall panel, 3/4 angle product view

55 Inch

VWK-55VT

55-inch IPS panel, 3.5mm bezel-to-bezel, 500 nit brightness. The larger format VT. More screen area per tile means fewer panels for the same wall size. Best for large lobbies, auditoriums, and open-plan spaces at 3-8 metre viewing distances.

  • 55″ IPS
  • 500 nit
  • 3.5mm B2B
  • 178° viewing
  • 24/7

Extreme Narrow Bezel LCD Displays

1.74mm bezel-to-bezel: choose your brightness level

Both models share the same 55-inch IPS panel and 1.74mm bezel-to-bezel measurement (1.3mm top/left + 0.44mm right/bottom). The VWK-55VE delivers 500 nit for controlled ambient environments. The VWK-55HE steps up to 700 nit for spaces with strong natural light or high-output fixtures. Same seam, different brightness. Choose based on the ambient light levels in your installation.

VWK-55VE 55-inch extreme narrow bezel LCD video wall panel, 3/4 angle product view

500 nit

VWK-55VE

55-inch IPS, 1.74mm bezel-to-bezel, 500 nit brightness. The extreme narrow bezel choice for controlled ambient environments (lobbies, meeting rooms, and retail spaces with standard commercial lighting). At 1.74mm the seam between tiles is a thin line, not a visible grid gap.

  • 55″ IPS
  • 500 nit
  • 1.74mm B2B
  • 178° viewing
  • 24/7
VWK-55HE 55-inch high brightness LCD video wall panel, 3/4 angle product view

700 nit

VWK-55HE

55-inch IPS, 1.74mm bezel-to-bezel, 700 nit brightness. 40% more brightness than the VWK-55VE at the same 1.74mm bezel specification. For atriums, large-window spaces, and transit environments where 500 nit panels wash out under ambient illuminance above 500 lux.

  • 55″ IPS
  • 700 nit
  • 1.74mm B2B
  • 178° viewing
  • 24/7

Razor Narrow Bezel LCD Display

Near-invisible 0.8mm seams for premium architectural installations

When the tiled wall must read as a single unbroken surface, 0.8mm is the specification. The VWK-55VH combines 0.44mm even bezels on all four sides with 700 nit brightness. The finest seam and highest brightness in the MediaTile LCD range, in one panel.

VWK-55VH 55-inch razor narrow 0.8mm bezel LCD video wall panel, 3/4 angle product view
Premium Specification

VWK-55VH

55-inch IPS panel with 0.8mm bezel-to-bezel (0.44mm even on all four sides). At normal viewing distances, the join between panels becomes effectively invisible. Paired with 700 nit brightness and 24/7 operation for premium lobbies, executive spaces, luxury retail, and any installation where the seam must disappear into the display.

  • 55″ IPS
  • 700 nit
  • 0.8mm B2B
  • 0.44mm Even Bezel
  • 24/7
  • IP5x

Where They Run

LCD video walls across every industry

From corporate reception walls to premium hotel lobbies. Match the bezel specification and brightness to the environment.

Why MediaTile

Hardware + Software + Support: One Partner

Every MediaTile LCD video wall is managed through our content platform. We spec it, install it, and support it in-house. One team, one call, for the life of the installation.

Complete Solution

Not just an LCD video wall. A complete signage solution.

Hardware, software, installation, and support from one team. No handoffs between vendors. No finger-pointing when the wall needs attention.

  • Every LCD model specified and installed by our in-house team
  • Bezels from 3.5mm standard to 0.8mm razor-thin
  • Rated for 24/7 continuous commercial operation
  • Managed through MediaTile’s cloud platform from any browser or device
  • Professional installation and project management on every job
  • Hardware financing via the Corum Digital Advantage Program
  • Unlimited training with every active subscription
  • SOC 2 Type II certified platform, zero-findings audit

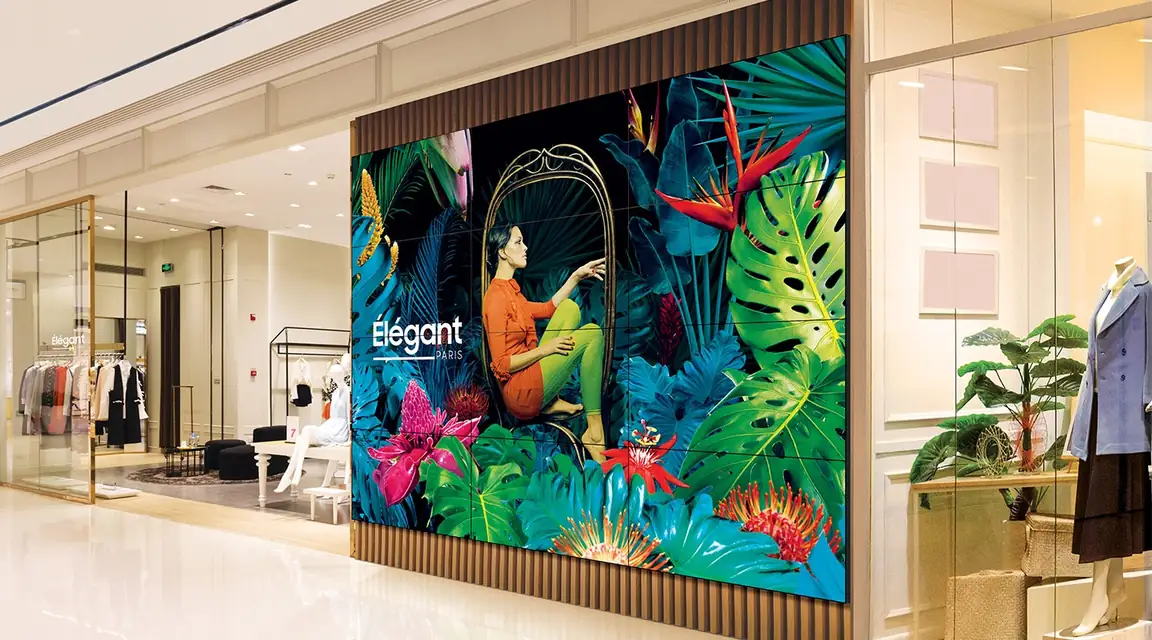

MediaTile LCD video wall installed in premium commercial environment

FAQ

LCD video wall questions answered

Common questions from facility managers, AV integrators, and project owners evaluating LCD video wall displays.

What is an LCD video wall and how does it differ from an LED video wall?

An LCD video wall is a tiled arrangement of commercial-grade LCD display panels (each with its own IPS backlit screen) mounted edge-to-edge to form a larger display surface. Unlike LED video walls, which use individual light-emitting diodes as pixels and have no bezel between modules, LCD video walls have a physical bezel where panels meet. Modern LCD video walls reduce this bezel to 0.8mm (VWK-55VH), making the seam nearly invisible at normal viewing distances. LCD video walls are typically more cost-effective for installations where fine-pitch LED is not required, and they offer precise colour calibration and consistent brightness at close viewing distances.

What bezel width should I choose for my installation?

The right bezel depends on how close viewers will stand and whether content spans multiple tiles. 3.5mm (VWK-46VT / VWK-55VT): visible as a grid line at close range, appropriate for tiled content where each panel shows independent information, including meeting rooms, general corporate lobbies, and retail spaces. 1.74mm (VWK-55VE / VWK-55HE): a thin line that most viewers don’t consciously notice at 2 metres or more. Appropriate for image-spanning content in premium commercial environments. 0.8mm (VWK-55VH): effectively invisible at 3 metres or more, ideal for architectural and premium installations where the wall must read as a single surface. Our team assesses your space and recommends the correct specification during the site survey.

When do I need 700 nit brightness instead of 500 nit?

Choose 700 nit (VWK-55HE or VWK-55VH) when the installation environment has high ambient illuminance, typically above 500 lux in front of the display. This includes spaces with large windows or skylights, south-facing atriums, transportation concourses with overhead fluorescent banks, or commercial interiors with high-output track lighting. In most controlled lobbies and meeting rooms with standard office lighting, 500 nit (VWK-46VT, VWK-55VT, VWK-55VE) is sufficient. If in doubt, our team measures ambient light conditions during the site survey.

How many LCD panels do I need for my wall size?

Panel count depends on the panel size you select and the target wall dimensions. As a reference: a 2×2 grid of VWK-55 panels (any model) produces an active area of approximately 2.43m wide × 1.37m tall. A 3×3 grid produces approximately 3.64m wide × 2.05m tall. For VWK-46VT, the active area per panel is smaller (1,022mm × 577mm). Our team calculates the exact panel count and layout for your wall dimensions, including seam allowances, mounting clearances, and cable management, during the quote process.

Can LCD video walls run 24 hours a day, 7 days a week?

Yes. Every model in the MediaTile LCD video wall range (VWK-46VT, VWK-55VT, VWK-55VE, VWK-55HE, and VWK-55VH) is certified for 24/7 continuous commercial operation. The panels and cabinets are engineered for the sustained thermal load of permanent installations. All models operate between 0°C and 40°C and carry IP5x dust protection for commercial environments.

What is DisplayPort 1.2 daisy-chain and why does it matter?

DisplayPort 1.2 daisy-chain allows you to drive a row of LCD panels from a single DP output on your source device. Each panel passes the signal to the next. In a standard 3×3 video wall, this means three DP cables (one per row) rather than nine individual signal runs. It eliminates the matrix switcher in most grid configurations, reduces cabling complexity, and simplifies signal troubleshooting. All five models in the MediaTile LCD range support DP 1.2 daisy-chain.

How do I get a quote for an LCD video wall?

Call 888-342-3010 or email sales@mediatile.com. Our team assesses your space, ambient light levels, viewing distances, and content requirements, then recommends the right model, panel count, and grid layout. Every quote covers hardware, installation, software platform, and ongoing support. Hardware financing is available through the Corum Digital Advantage Program.

Find the right LCD video wall for your space

Tell us your venue, viewing distance, and bezel preference. We’ll spec the model, quote the installation, and connect it to MediaTile’s content platform.
