DVR Series
Eight kilograms per panel. COB LED. IP65 front modules. 90-degree corner wrapping. The DVR ships from job site to job site without drama.
Four reasons the DVR holds up on the rental circuit
COB LEDs bonded directly to the board. No wire connections. An 8kg panel that crews actually want to carry. Built for venues that change every week.

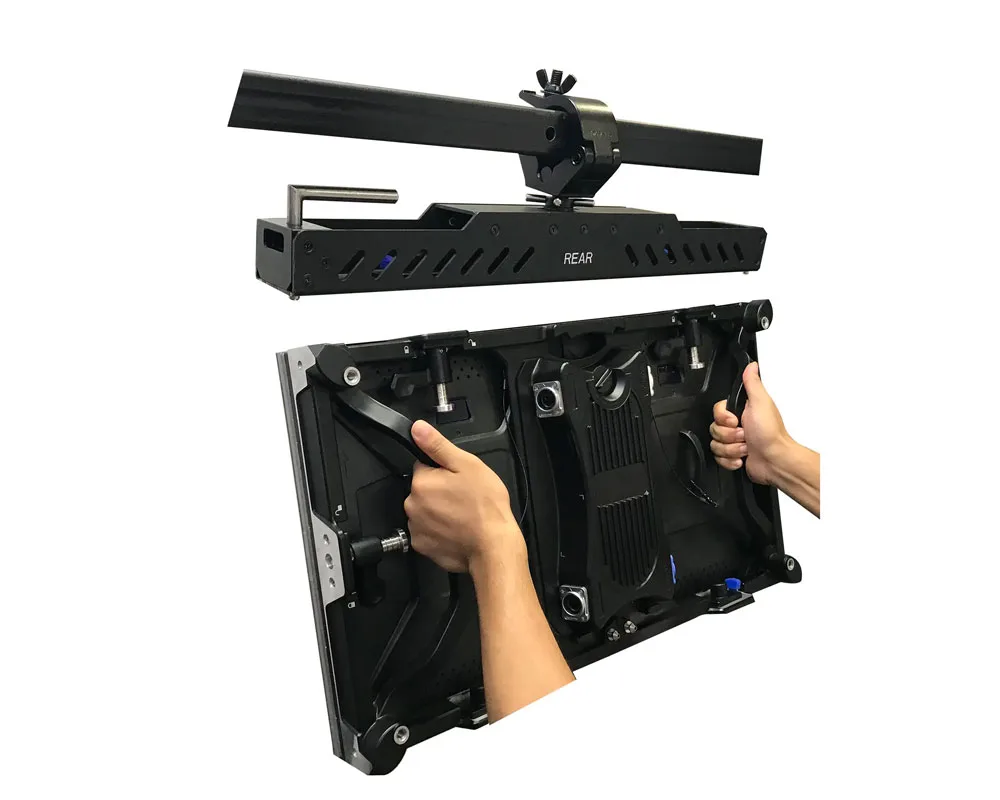

8 kg Per Panel: Crews Load Faster
At 8 kilograms, a two-person crew loads and unloads a full wall without a lift. Die-cast aluminum keeps the frame rigid and the weight number honest. Four hours into a load-in, that matters.

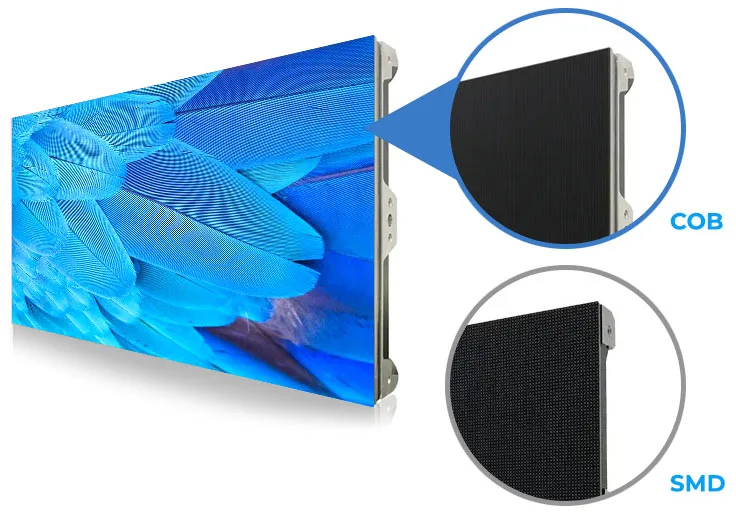

COB LED: No Wire Bonds to Fail
Chip-on-Board bonds red, green, and blue directly onto the board. No wire connections to snap, no single-LED cascade failures. Run the DVR across 200 shows and the pixel map stays intact.

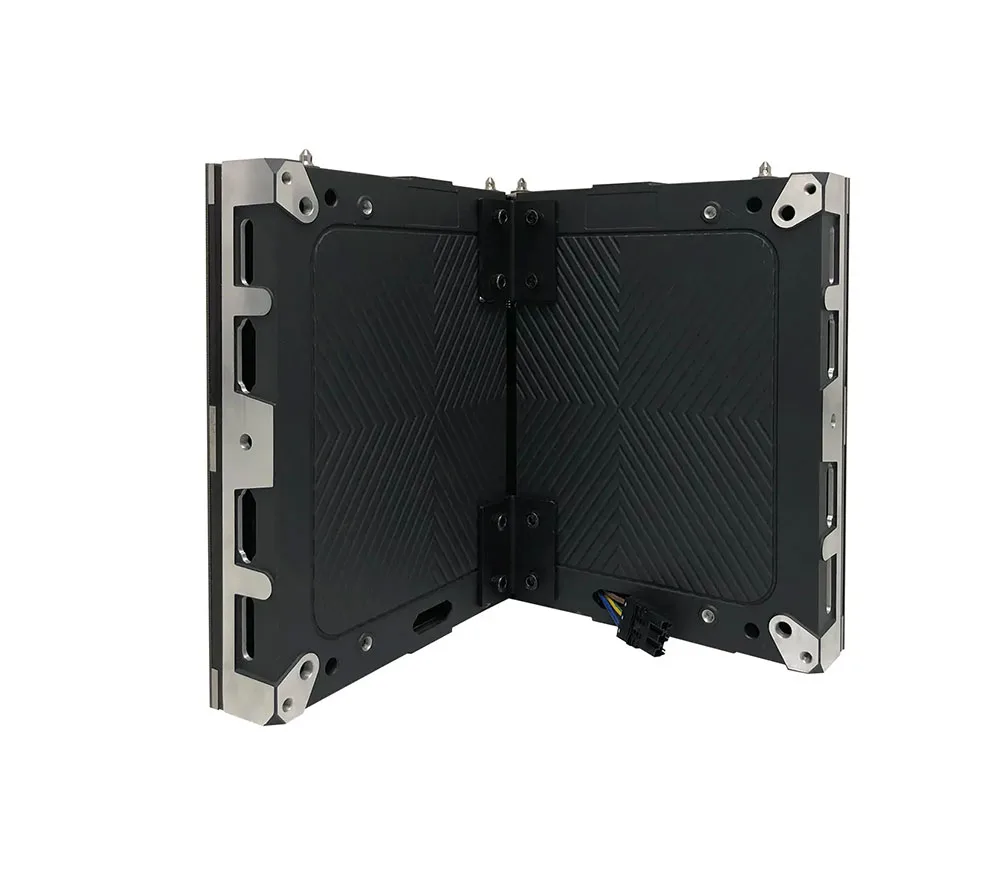

90-Degree Corners: No Custom Fabrication
Panels connect at 90 degrees with no visible seam. L-shaped corners, U-shaped configurations, and full room wraps all use standard panels. No custom fabrication, no surprise charges at the corner quote.
IP65 Front & Dual Access Servicing
Front modules carry IP65 protection against dust and water spray. Front and rear access opens independently. Service one panel mid-show without pulling the wall down.
DVR 1.2 vs 1.5 vs 1.9: match the pitch to your venue
Pixel pitch sets the minimum comfortable viewing distance. Match the pitch to the room, not the other way around.
DVR 1.2
1.26mm · 480×270 per panel
- Viewing distance: 1–3 metres
- 13-bit grey scale
- Close-contact trade show booths
- Product launch stages
- COB LED, no wire bonds
Best for: Product launches, trade show booths, corporate walk-up displays
DVR 1.5
1.58mm · 384×216 per panel
- Viewing distance: 2–5 metres
- 13-bit grey scale
- Widest sweet spot for mixed crowds
- 300 W/m² max power
- COB LED, no wire bonds
Best for: Conference stages, corporate events, live shows, rental fleets
DVR 1.9
1.9mm · 320×180 per panel
- Viewing distance: 5+ metres
- 14-bit grey scale
- Auditoriums and arena floors
- Lowest cost per square metre
- COB LED, no wire bonds
Best for: Auditoriums, house-of-worship, large event floors, outdoor stages
DVR Series: Full Spec Sheet
Complete technical specifications for all three DVR Series mobile and rental LED display models.
| Specification | DVR 1.2 | DVR 1.5 | DVR 1.9 |
|---|---|---|---|
| Pixel Pitch (mm) | 1.26 | 1.58 | 1.9 |
| Panel Size (mm) | 608 × 342 × 80 | 608 × 342 × 80 | 608 × 342 × 80 |
| Pixel Resolution (per panel) | 480 × 270 | 384 × 216 | 320 × 180 |
| LED Type | COB | COB | COB |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Panel Weight (kg) | 8 | 8 | 8 |
| Brightness (nit) | 600 | 600 | 600 |
| Grey Scale (bit) | 13 | 13 | 14 |
| Refresh Rate (Hz) | 3000 | 3000 | 3000 |
| Power Max. (W/m²) | 450 | 300 | 260 |
| Aspect Ratio | 16:9 | ||
| IP Rating | IP65 Front · IP54 Rear | ||
| Corner Support | 90-Degree Corner Wrapping | ||
| Installation / Maintenance | Front & Rear Access | ||
| Certification | CE · ETL · FCC | ||
Hardware + Software + Support: One Partner
MediaTile doesn’t just supply the DVR Series. We spec it, deploy it, connect it to our cloud platform, and support it for the life of the installation.
Cloud Content Management
Schedule, update, and monitor all DVR displays remotely through MediaTile’s cloud platform. Push content to every screen in seconds from any browser, no on-site visits required.
Learn more →AI Content Designer
Create content purpose-built for high-resolution LED displays using MediaTile’s drag-and-drop designer with AI content generation. No design team required.
Learn more →Smart Scheduling
Automate content rotations, dayparting, and event-triggered playlists. Set your schedule once and let the platform manage it, across any number of DVR installations.
Learn more →Audience Analytics
Measure dwell time, engagement, and audience demographics in real time, without storing personal data. Turn your LED rental display into a measurable business asset.
Learn more →Emergency Alert Ready
Override all DVR screens instantly with life-safety messaging via CAP protocol integration. Meets compliance requirements for events, venues, healthcare, and government facilities.
Learn more →In-House Installation & Support
Our team specs, installs, and supports every DVR deployment. Phone and email support included, never outsourced. Hardware financing available through the Corum Digital Advantage Program.
Learn more →
Every DVR connects to MediaTile’s cloud platform. Most rental LED suppliers don’t offer that.
Hardware, software, deployment, and support from one team. No handoffs. No finger-pointing when something needs attention on show day.
- DVR Series panels specified and deployed by our in-house team
- Rated for continuous commercial operation across multiple venues
- Managed through MediaTile's cloud platform, manage content from any browser or device
- Professional installation and project management on every job
- Hardware financing via the Corum Digital Advantage Program
- In-house content creation team available on demand
- Unlimited training with every active subscription
- SOC 2 Type II certified platform, zero-findings audit

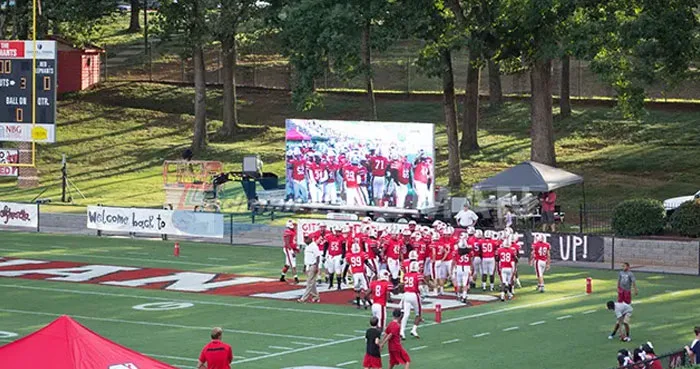

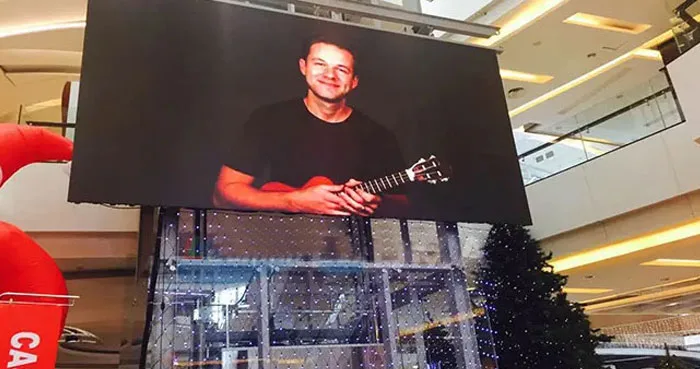

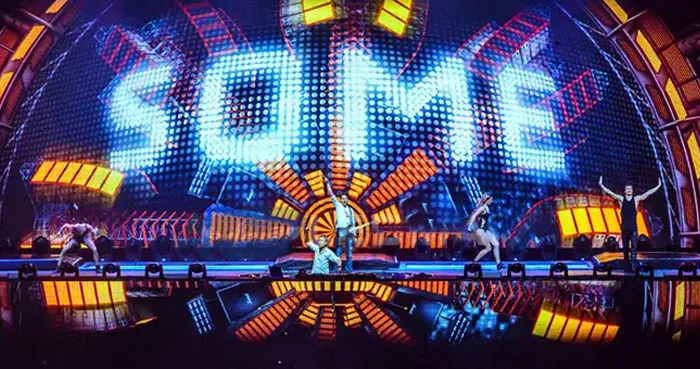

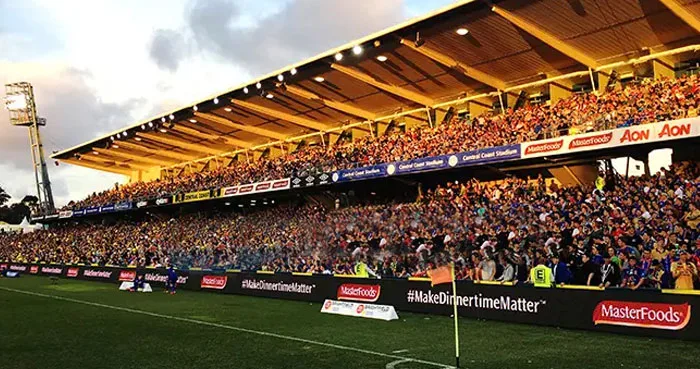

DVR Series in the field
Trade shows, corporate events, concerts, and temporary installations running the DVR Series.
Other LED Display Series
MediaTile carries the complete LED lineup. Match the series to your pixel pitch, venue type, and installation needs.
DVW Series
Indoor/outdoor mobile display with curved wall support up to ±12° inner and ±3° outer, 1000 nit, 3840Hz, and weatherproof gaskets.
Learn More →
DVNS Series
Outdoor fixed LED display built for permanent exterior installations. High-brightness, weatherproof, and rated for 24/7 outdoor operation.
Learn More →
DVQ Series
COB Flip Chip, 0.78mm to 1.56mm pixel pitch, 3840Hz, common cathode with 30% energy savings. For corporate lobbies, retail, and broadcast.
Learn More →
DVK Series
SMD LED, 1.6mm to 3.2mm, 3500 nit, 16:9 die-cast aluminum cabinets with 90-degree corner capability and front plus rear serviceability.
Learn More →Before you rent: DVR questions answered
Common questions from rental companies, AV integrators, and event producers evaluating the DVR Series.
