Android Digital Signage Players: Smart Solutions for Digital Signage
Transform your digital displays with MediaTile's support for Android media players. Get flexible, cost-effective solutions that deliver reliable performance without breaking the bank.
Android Media Players
Looking to save money? Check out Android. They’re easy to use, budget-friendly, and customizable to fit your needs.

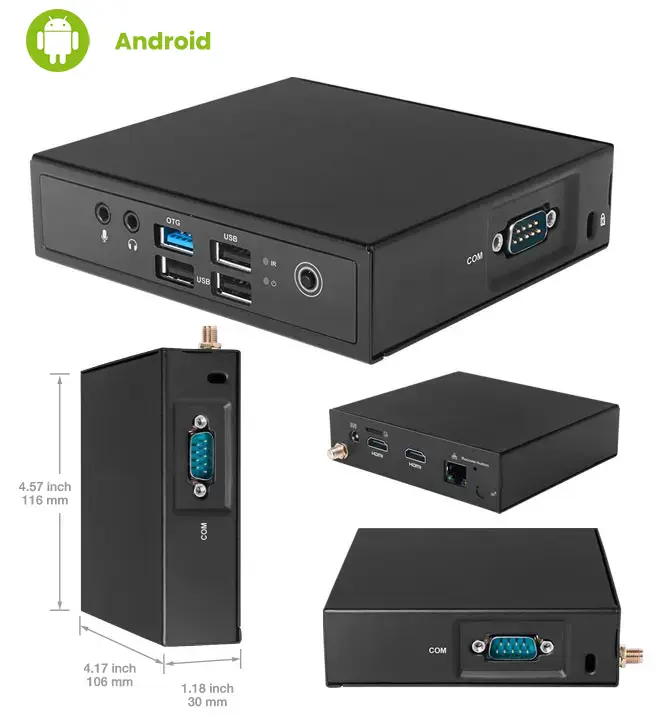

CMP100-9 Android Media Player
OS
- Android 11
CPU
- Rockchip RK3399 1.80GHz, 2 Cores Cortex-A72 & 4 Cores Cortex-A53
Memory
- 4GB LPDDR4-2133 MHz
Storage
- 64 GB, Onboard eMMC
Display
- 1 x HDMI (Max. 4096 x 2160 @60 Hz)
- 1 x HDMI (Max. 2560 x 1440 @30 Hz)
Connectivity
- 1 x USB3.2 Gen1 (OTG), 3 x USB2.0
- 1 x RS232
- 1 X MIC-IN, 1 x AUDIO-OUT
Network
- 10/100/1000M Ethernet
- Built in 2.4G/5G WIFI Support IEEE 802.11ac/a/b/g/n
- Bluetooth 4.1
- Optional Cellular Module
Enclosure
- Metal Enclosure
Dimensions
- 116 mm x 106 mm x 30 mm (4.57” x 4.17” x 1.18”)
CMP100-10 Android Media Player
A compact, fanless 4K player with dual HDMI outputs, an HDMI input and an 8-core processor with a 6 TOPS AI accelerator. Ships with a VESA mount plate so it can sit out of sight behind the display. The same hardware is also offered with Debian 12 as the CMP100-10 Linux media player.
OS
- Android 14 (Debian 12 optional)
CPU
- Rockchip RK3576, 8 cores: 4 x Cortex-A72 & 4 x Cortex-A53
- NPU with 6 TOPS AI acceleration
Memory
- 4 GB LPDDR4X, onboard
Storage
- 64 GB, onboard eMMC
Display
- 1 x HDMI 2.0 out (Max. 3840 x 2160 @60 Hz)
- 1 x HDMI 1.4 out (Max. 2560 x 1600 @60 Hz)
- 1 x HDMI 2.0 in (Max. 3840 x 2160 @60 Hz)
Connectivity
- 3 x USB 3.2 Gen 1, 1 x USB 2.0 OTG
- 1 x RS-232
- 1 x headset jack (MIC-IN and AUDIO-OUT)
Network
- 10/100/1000M Ethernet
- Built in 2.4G/5G Wi-Fi 802.11ac, external antenna
- Bluetooth 4.2
Enclosure
- Fanless metal enclosure, black
Dimensions
- 160 mm x 107 mm x 36 mm (6.3” x 4.2” x 1.4”)
CMP100-10 full specifications
| Specification | Details |
|---|---|
| Model | CMP100-10 |
| Processor | Rockchip RK3576, 8 cores: 4 x Cortex-A72 & 4 x Cortex-A53; 6 W TDP |
| AI accelerator | NPU, 6 TOPS; INT4, INT8, INT16, FP16, BF16 and TF32 |
| Graphics | Mali-G52 MC3; OpenGL ES 3.2, OpenCL 2.0, Vulkan |
| Memory | 4 GB LPDDR4X, onboard |
| Storage | 64 GB eMMC, onboard |
| Operating system | Android 14 (Debian 12 optional) |
| Video decoding | Up to 8K at 30 fps: H.264, H.265, VP9, AVS2 |
| Video encoding | Up to 4K at 60 fps: H.264, H.265 |
| Display outputs | 1 x HDMI 2.0 up to 3840 x 2160 at 60 Hz (HDCP 2.3); 1 x HDMI 1.4 up to 2560 x 1600 at 60 Hz (HDCP 2.2) |
| Video input | 1 x HDMI 2.0 in, up to 3840 x 2160 at 60 Hz (HDCP 2.3) |
| Network | 1 x Gigabit Ethernet (RJ45); Wi-Fi 802.11ac, 2.4 and 5 GHz; Bluetooth 4.2; external antenna |
| USB and serial | 3 x USB 3.2 Gen 1, 1 x USB 2.0 OTG, 1 x RS-232 |
| Audio | 1 x headset jack (microphone in and audio out) |
| System | Hardware watchdog timer; auto power on; real-time clock with a power-on schedule set per day of the week |
| Power | 12 V DC, 2 A; lockable DC input; AC power adapter included |
| Power consumption | 8.5 W idle; 16.3 W full load |
| Enclosure | Fanless metal, black; 160 x 107 x 36 mm (6.3 x 4.2 x 1.4 in) |
| Weight | Unit 0.67 kg (1.48 lb); packaged with mount 1.3 kg (2.87 lb) |
| Temperature | Operating 0 to 45 °C (32 to 113 °F) with 0.7 m/s airflow; storage −20 to 75 °C (−4 to 167 °F) |
| Humidity | 95% at 45 °C, non-condensing |
| Mounting | VESA mount plate and screws included: 75 x 75 and 100 x 100 mm |
| Certifications | CE, FCC Class B, UKCA, RoHS |
| Warranty | 1 year, return to depot |
Ports, front and rear
Front:
- Power button
- Recovery button
- 3 x USB 3.2 Gen 1
- 1 x USB 2.0 OTG
- 1 x RS-232 serial

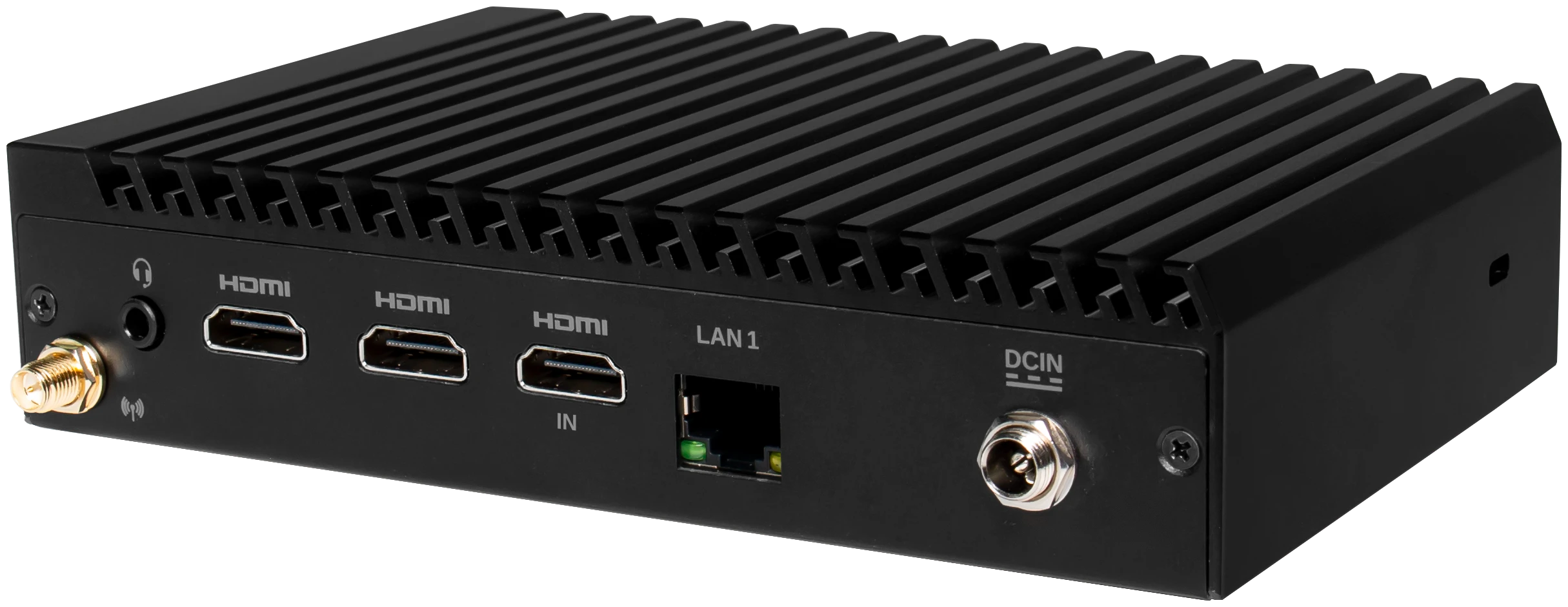

Rear:
- Wi-Fi antenna connector
- Headset jack
- 2 x HDMI outputs
- 1 x HDMI input
- Gigabit Ethernet
- 12 V DC in, lockable

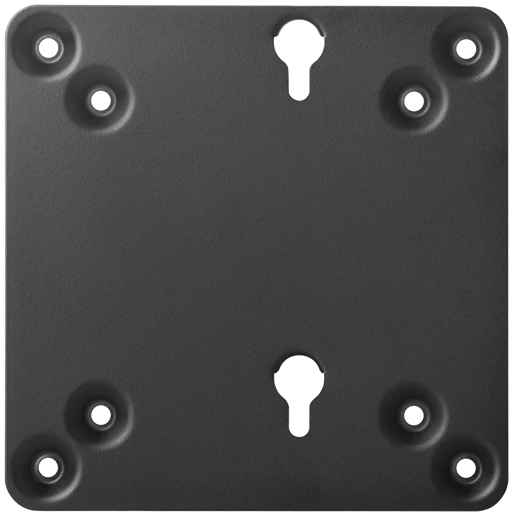

VESA mounting
The player ships with a VESA mount plate and screws that fit the 75 x 75 mm and 100 x 100 mm patterns, so it can sit out of sight behind the display.
What ships in the box
- CMP100-10 media player
- VESA mount plate and screws
- Wi-Fi antenna
- AC power adapter and power cable
Cost-Smart Choices
Affordable Options:
Deploy more screens for less investment.
Wide Availability:
Choose from numerous device options.
Value Performance:
Get quality results at reasonable costs.
Simple Operation
Quick Setup:
Get displays running with minimal effort.
Clear Interface:
Navigate controls with ease.
Focused Function:
Optimized for digital signage needs.
Flexible Solutions
Custom Settings:
Adjust players to match your requirements.
Device Options:
Use our purpose-built players or choose your own.
Easy Adaptation:
Scale your system as needs change.
Reliable Results
Stable Performance:
Count on consistent content delivery.
Smooth Operation:
Keep your displays running effectively.
Proven Platform:
Trust in Android's established technology.
Why Android Players Matter
When budget meets performance requirements, Android players offer the ideal balance. They provide the features you need without unnecessary complexity or cost.
More Supported Media Players for Digital Signage
FAQ
Frequently Asked Questions:
Which Android devices work with your platform?
From compact units to robust systems. Including our purpose-built players.
What makes Android players cost-effective?
Quality performance at lower price points, plus wide availability.
Can I customize the players?
Yes! Adjust settings to match your exact requirements.
What content can they handle?
From HD videos to live feeds. All your digital signage needs.
Ready to Power Your Displays?
Get the performance you need at prices that make sense. With MediaTile's Android media player support, quality digital signage becomes accessible.
Want to see Android players in action? Let's schedule a demo and show you how these devices can power your digital signage network effectively and affordably. Your displays deserve smart solutions. Are you ready to implement them?
