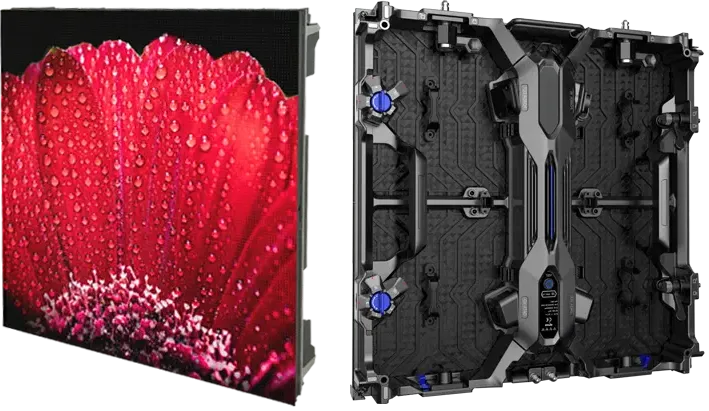

DVW Series
Curve inward up to 12 degrees. Curve outward up to 3 degrees. 1000 nit. 3840Hz for broadcast. The DVW goes where flat panels stop.
Four reasons the DVW handles venues other panels won’t
Twelve degrees of inner curve. IP67 weatherproofing. 3840Hz for broadcast cameras. Built for stages and venues that demand more than a flat wall.
Curved Wall Support: ±12° Inner, ±3° Outer
Each panel adjusts individually to hit the curve angle your set design calls for. Inner curves up to 12 degrees for concave stage backdrops. Outer curves up to 3 degrees for convex wraps. The hardware bends before the budget does.

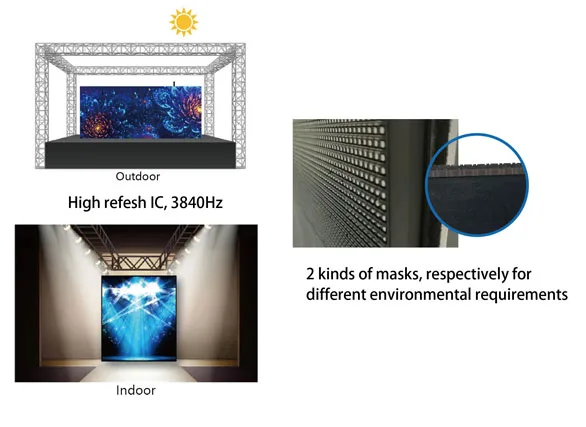

1000 nit: Holds Up in a Lit Arena
At 1000 nit, the DVW holds up in a fully lit arena during sound check and reads on camera without wash-out. Comparable SMD panels at this pitch deliver 600 to 800 nit. The extra headroom shows.
SMD LED at 3840Hz: Broadcast-Ready
Surface-mounted diodes at 3840Hz refresh. Any camera, any shutter speed, no scan lines in the footage. Broadcast crews stop asking about your spec sheet and start shooting.

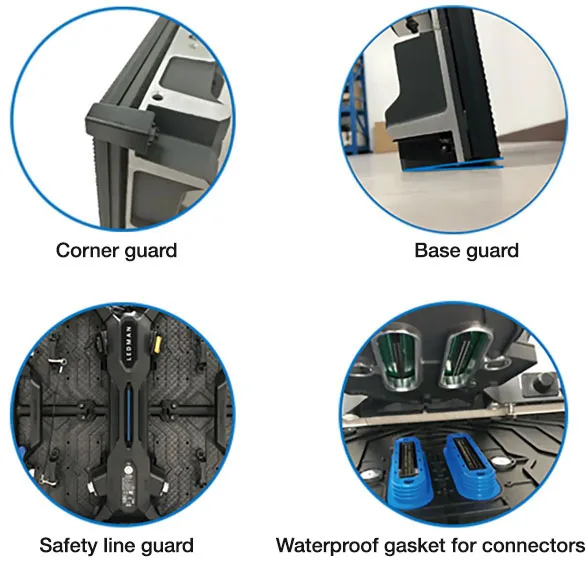

IP67 Gaskets & Modular Retrofit
IP67-rated gaskets seal the panel against sustained water exposure. When a module fails in the field, the modular retrofit design lets a technician swap it in place without pulling the whole section down.
DVW 1.9 vs 2.6: distance sets the pitch
Two models cover theater-scale close viewing through large arena distances. Match the pitch to your front-row seat.
DVW 1.9
1.9mm · 320×180 per panel
- Viewing distance: 3–8 metres
- 14-bit grey scale
- 3840Hz, broadcast clean at any shutter
- Curved wall support standard
- IP67 weatherproof
Best for: Theater stages, concert backdrops, broadcast studios, events with cameras
DVW 2.6
2.6mm · 234×132 per panel
- Viewing distance: 8+ metres
- 14-bit grey scale
- 3840Hz refresh rate
- Lower cost per square metre
- IP67 weatherproof
Best for: Arenas, stadiums, large outdoor events, festival stages
DVW Series: Full Spec Sheet
Complete technical specifications for both DVW Series indoor/outdoor mobile LED display models.
| Especificación | DVW 1.9 | DVW 2.6 |
|---|---|---|
| Pixel Pitch (mm) | 1.9 | 2.6 |
| Panel Size (mm) | 608 × 342 × 80 | 608 × 342 × 80 |
| Pixel Resolution (per panel) | 320 × 180 | 234 × 132 |
| LED Type | SMD | SMD |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum |
| Brightness (nit) | 1000 | 1000 |
| Grey Scale (bit) | 14 | 14 |
| Refresh Rate (Hz) | 3840 | 3840 |
| Inner Curve Support | Up to ±12° | |
| Outer Curve Support | Up to ±3° | |
| IP Rating | IP67 Weatherproof | |
| Installation / Maintenance | Dual-Access & Modular Retrofit | |
| Certification | CE · ETL · FCC | |
Hardware + Software + Support: One Partner
MediaTile doesn’t just supply the DVW Series. We spec it, deploy it, connect it to our cloud platform, and support it for the life of the installation.
Cloud Content Management
Schedule, update, and monitor all DVW displays remotely through MediaTile’s cloud platform. Push content to every screen in seconds from any browser, no on-site visits required.
Learn more →AI Content Designer
Create content purpose-built for high-resolution LED displays using MediaTile’s drag-and-drop designer with AI content generation. No design team required.
Learn more →Programación inteligente
Automate content rotations, dayparting, and event-triggered playlists. Set your schedule once and let the platform manage it, across any number of DVW installations.
Learn more →Análisis de audiencia
Measure dwell time, engagement, and audience demographics in real time, without storing personal data. Turn your LED event display into a measurable business asset.
Learn more →Emergency Alert Ready
Override all DVW screens instantly with life-safety messaging via CAP protocol integration. Meets compliance requirements for venues, events, healthcare, and government facilities.
Learn more →In-House Installation & Support
Our team specs, installs, and supports every DVW deployment. Phone and email support included, never outsourced. Hardware financing available through the Corum Digital Advantage Program.
Learn more →
Every DVW connects to MediaTile’s cloud platform. Most event LED suppliers don’t offer that.
Hardware, software, deployment, and support from one team. No handoffs. No finger-pointing when content needs to change an hour before doors open.
- DVW Series panels specified and deployed by our in-house team
- Rated for continuous operation across indoor and outdoor venues
- Managed through MediaTile's cloud platform, manage content from any browser or device
- Professional installation and project management on every job
- Hardware financing via the Corum Digital Advantage Program
- In-house content creation team available on demand
- Unlimited training with every active subscription
- SOC 2 Type II certified platform, zero-findings audit

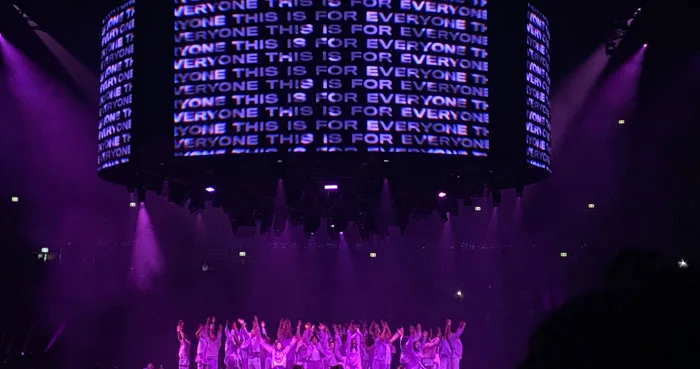

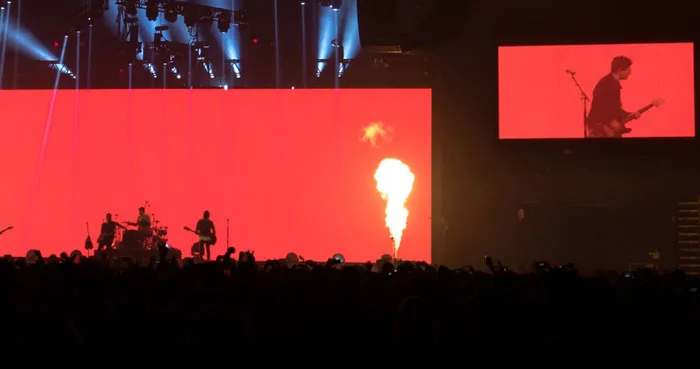

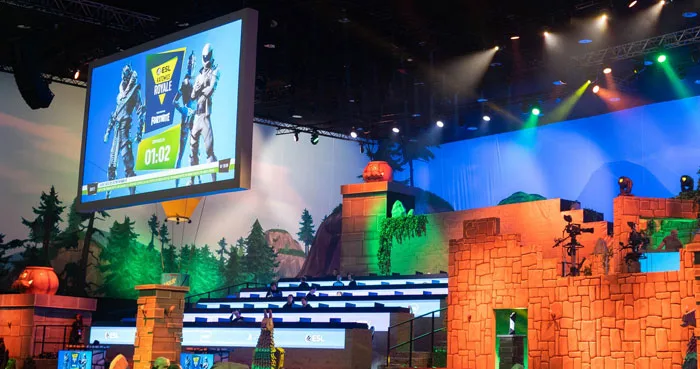

DVW Series in the field
Theaters, concert stages, arenas, and outdoor events running the DVW Series.
Other LED Display Series
MediaTile carries the complete LED lineup. Match the series to your pixel pitch, venue type, and installation needs.

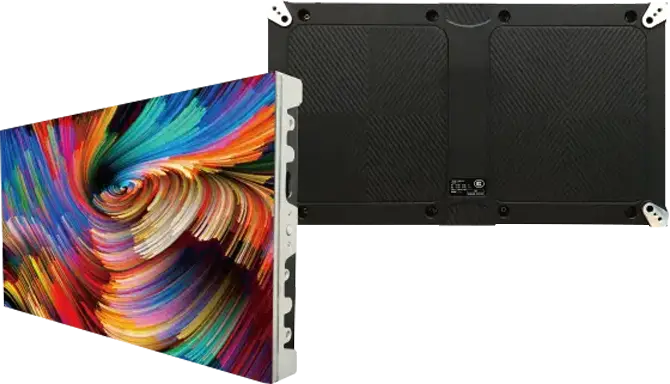

Serie DVR
Mobile rental LED display with COB LED, 8kg panels, 600 nit, IP65 front modules, and continuous 90-degree corner wrapping for trade shows and events.
Learn More →

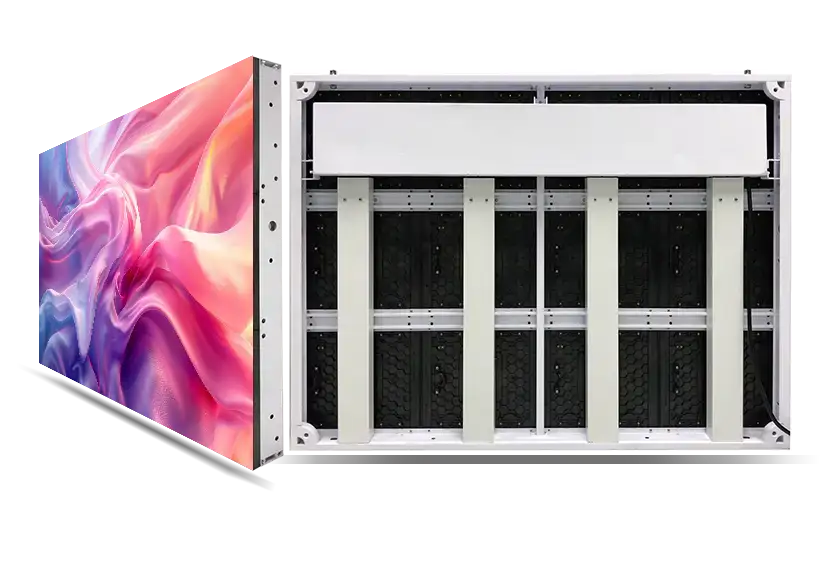

DVNS Series
Outdoor fixed LED display built for permanent exterior installations. High-brightness, weatherproof, and rated for 24/7 outdoor operation.
Learn More →

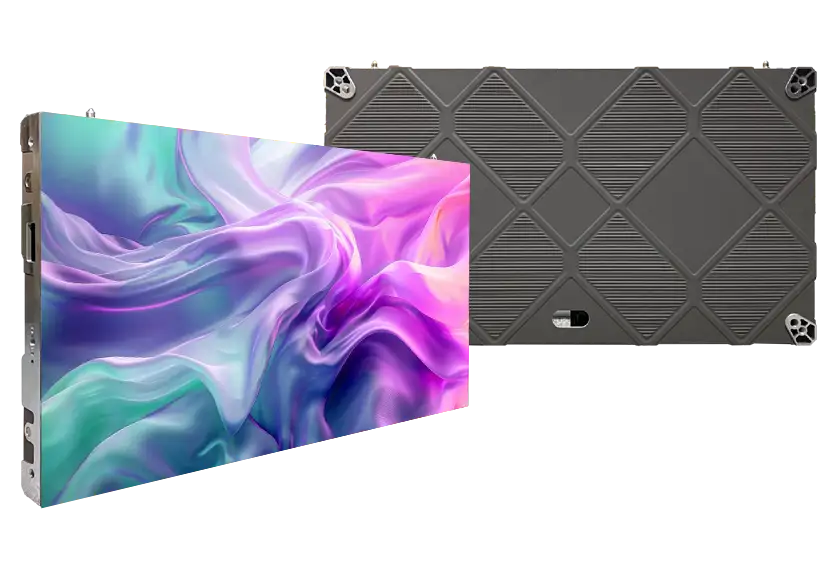

DVQ Series
COB Flip Chip, 0.78mm to 1.56mm pixel pitch, 3840Hz, common cathode with 30% energy savings. For corporate lobbies, retail, and broadcast.
Learn More →

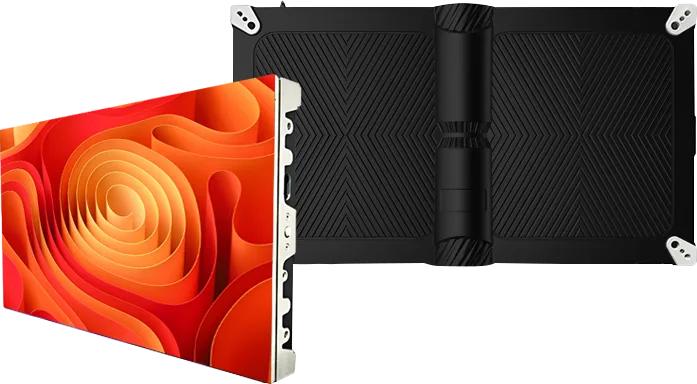

Serie DVK
