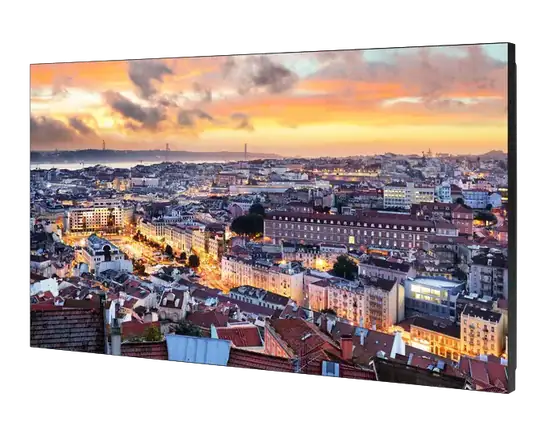

VWK-55HE
55-inch IPS panel with 1.74mm bezel-to-bezel width and 700 nit brightness. IP5x dust resistance and 24/7 operation. Extreme narrow bezel meets high brightness, for demanding environments where both specifications matter.
Six reasons the VWK-55HE performs in bright, demanding commercial environments
The VWK-55HE combines the 1.74mm extreme narrow bezel of the VWK-55VE with 700 nit brightness (40% more than the standard 500 nit models). For spaces where ambient light is high and seam visibility still matters.
1.74mm Bezel-to-Bezel
Extreme narrow 1.74mm bezel-to-bezel (1.3mm top/left + 0.44mm right/bottom) keeps seams nearly invisible in a tiled grid. At 55 inches with 700 nit brightness, the VWK-55HE delivers impact in bright spaces without the join detracting from the display.
700 nit High Brightness
At 700 nit, the VWK-55HE maintains legibility in spaces with strong natural light, floor-to-ceiling glazing, and high-output artificial lighting. Where 500 nit panels wash out, the VWK-55HE holds contrast and colour accuracy throughout the day.
178° IPS Viewing Angles
IPS panel delivers consistent colour and brightness at extreme off-axis angles. No colour shift or brightness drop when viewers approach from the side. Important in atriums, open floors, and transportation concourses where audience positions are unpredictable.
Picture Enhancer & Black Equalizer
Picture Enhancer improves edge sharpness and colour depth. Black Equalizer lifts shadow detail without washing highlights. Both operate at the panel level without additional processing hardware, which means cleaner installs and fewer components to service.
DisplayPort 1.2 Daisy-Chain
DP 1.2 daisy-chain drives a full panel row from a single source output. Reduces signal cabling across the installation and eliminates the need for a matrix switcher in standard grid configurations. Straightforward signal architecture from source to panel.
IP5x & 24/7 Certified
IP5x dust-resistant rating and 24/7 continuous operation certification. Engineered for commercial environments that run continuously: lobby video walls, transit displays, retail installations, and control rooms where downtime is not an option.
Same 1.74mm bezel. The difference is brightness.
Both models are 55-inch IPS panels with 1.74mm extreme narrow bezel, 24/7 operation, and identical physical dimensions. The VWK-55HE delivers 700 nit (40% more brightness than the VWK-55VE's 500 nit). Choose based on ambient light levels in your installation.
VWK-55VE
55″ · 500 nit · 1.74mm Bezel-to-Bezel
- 500 nit brightness
- 1.74mm bezel-to-bezel
- IPS, 178°/178° viewing
- 19.5 kg per panel, 220 W max
- DP 1.2 daisy-chain
Best for: Controlled ambient light, lobbies, meeting rooms, retail with standard lighting
VWK-55HE
55″ · 700 nit · 1.74mm Bezel-to-Bezel
- 700 nit brightness (40% more than VWK-55VE)
- 1.74mm bezel-to-bezel
- IPS, 178°/178° viewing
- 19.5 kg per panel, 250 W max
- DP 1.2 daisy-chain
Best for: High ambient light, atriums, large windows, transit hubs, spaces where 500 nit panels wash out
VWK-55HE: Full Spec Sheet
Complete technical specifications for the VWK-55HE 55-inch high brightness extreme narrow bezel LCD video wall panel.
| Specification | VWK-55HE |
|---|---|
| Screen Size | 55″ |
| Panel Type | IPS |
| Resolution | 1,920 × 1,080 (FHD) |
| Brightness | 700 nit |
| Contrast Ratio | 1,000:1 (Dynamic: 140,000:1) |
| Viewing Angle (H/V) | 178° / 178° |
| Response Time | 8 ms |
| Colour Gamut | 72% |
| Bezel (Bezel-to-Bezel) | 1.74 mm |
| Bezel Width (T/L) | 1.3 mm |
| Bezel Width (R/B) | 0.44 mm |
| Active-to-Active | 2.49 mm |
| HDMI In | 2 (v2.0) |
| DisplayPort In | 1 (v1.2, Daisy-Chain) |
| DVI In | 1 |
| USB | 1 |
| Power Consumption | 250 W (Max) / 0.5 W (Sleep) |
| Panel Weight | 19.5 kg |
| Dimensions (W×H×D) | 1,212.2 × 683.0 × 70.4 mm |
| VESA Mount | 600 × 400 mm |
| IP Rating | IP5x |
| Operating Hours | 24/7 |
| Operating Temperature | 0°C – 40°C |
| Power Supply | AC 100–240V, 50/60Hz |
Hardware + Software + Support: One Partner
MediaTile specs the grid, installs the wall, connects it to our content platform, and supports it for the life of the installation. One team, one call.
Cloud Content Management
Schedule, update, and monitor all VWK-55HE panels remotely through MediaTile’s platform. Push content changes to every tile in seconds from any browser, no on-site visit required.
Learn more →AI Content Designer
Build content formatted precisely for your wall resolution using MediaTile’s designer with AI generation built in. Day-to-day updates without an agency or design team.
Learn more →Smart Scheduling
Automate dayparting, event-triggered playlists, and content rotations. Set the schedule once and the platform manages delivery across every VWK-55HE panel in your installation.
Learn more →Audience Analytics
Measure dwell time, engagement, and audience demographics in real time without storing personal data. Turn your high-brightness video wall into a measurable business asset.
Learn more →Emergency Alert Ready
Override every display instantly with CAP-compliant life-safety messaging. Meets compliance requirements for healthcare, government, education, and financial institutions.
Learn more →In-House Installation & Support
Our team specs, installs, and supports every VWK-55HE grid. Phone and email support included, never outsourced. Hardware financing available through the Corum Digital Advantage Program.
Learn more →
VWK-55HE panels managed through MediaTile’s content platform. Most LCD suppliers don’t offer one.
Hardware, software, installation, and support from one team. No handoffs between vendors. One call when anything needs attention.
- VWK-55HE panels specified and installed by our in-house team
- 700 nit, remains legible in high ambient-light environments
- 1.74mm bezel-to-bezel, with near-invisible seams in the tiled grid
- Rated for 24/7 continuous commercial operation
- Remote content management via MediaTile’s cloud platform
- Professional installation and project management on every job
- Hardware financing via the Corum Digital Advantage Program
- SOC 2 Type II certified platform, zero-findings audit
LCD Video Wall Installations
VWK-55HE grids running in bright lobbies, atriums, transit environments, and high-ambient commercial spaces.
Other LCD Video Wall Displays
MediaTile carries the complete VWK LCD video wall lineup. Match the panel to your bezel specification, brightness requirement, and room size.
VWK-46VT
46-inch IPS, 500 nit, 3.5mm bezel-to-bezel. Compact format for tighter spaces and closer viewing distances of 1.5–5 metres.
Learn More →
VWK-55VT
55-inch IPS, 500 nit, 3.5mm bezel-to-bezel. Standard bezel format for large-format commercial video wall installations.
Learn More →
VWK-55VE
55-inch IPS, 500 nit, 1.74mm bezel-to-bezel. Extreme narrow bezel for controlled ambient-light environments where seam visibility is the primary concern.
Learn More →
VWK-55VH
55-inch IPS, 700 nit, 0.8mm bezel-to-bezel. Razor-thin near-invisible seams for premium installations where only the finest bezel specification will do.
Learn More →VWK-55HE questions answered
Common questions from AV integrators, facility managers, and project owners evaluating the VWK-55HE high brightness LCD video wall panel.
