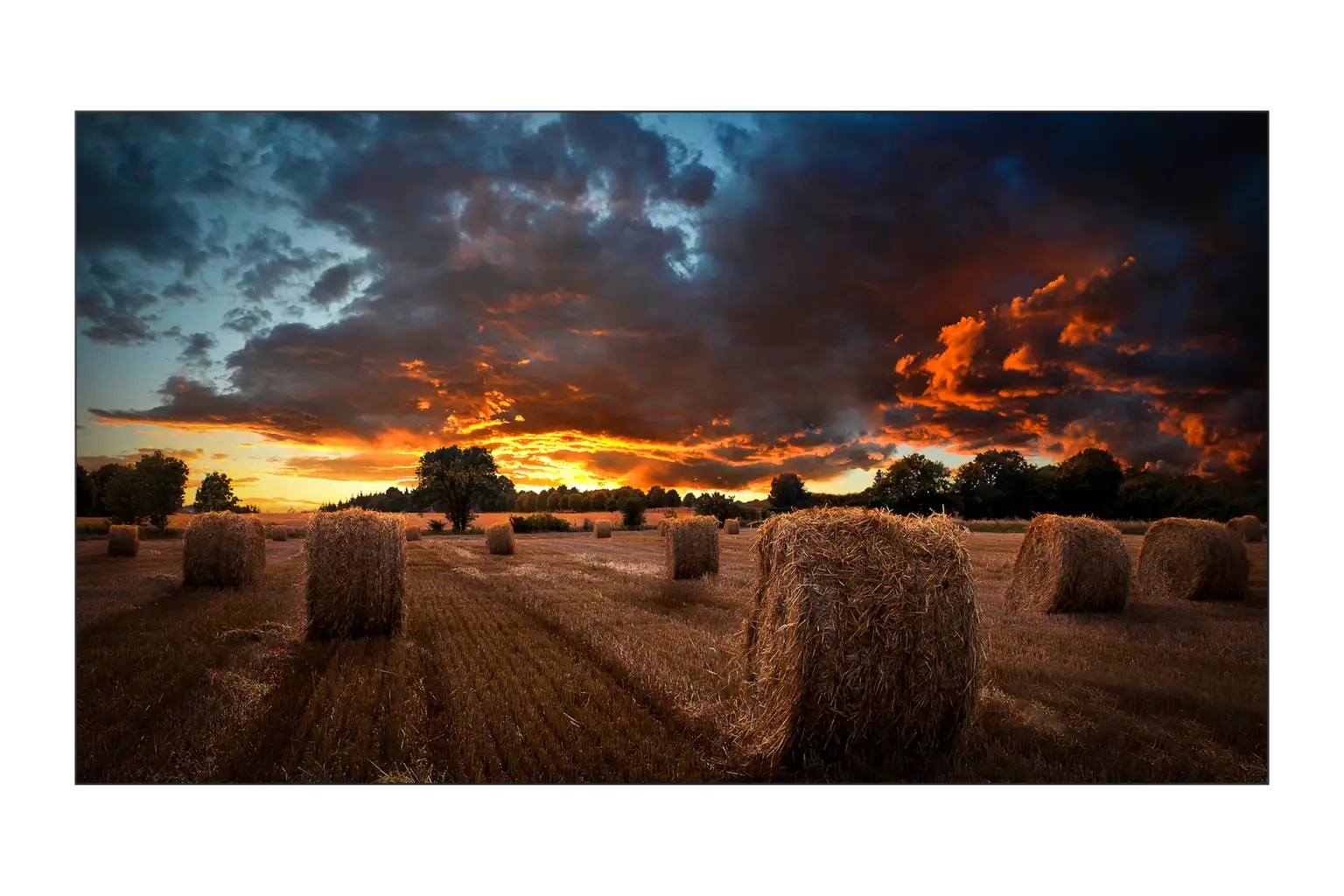

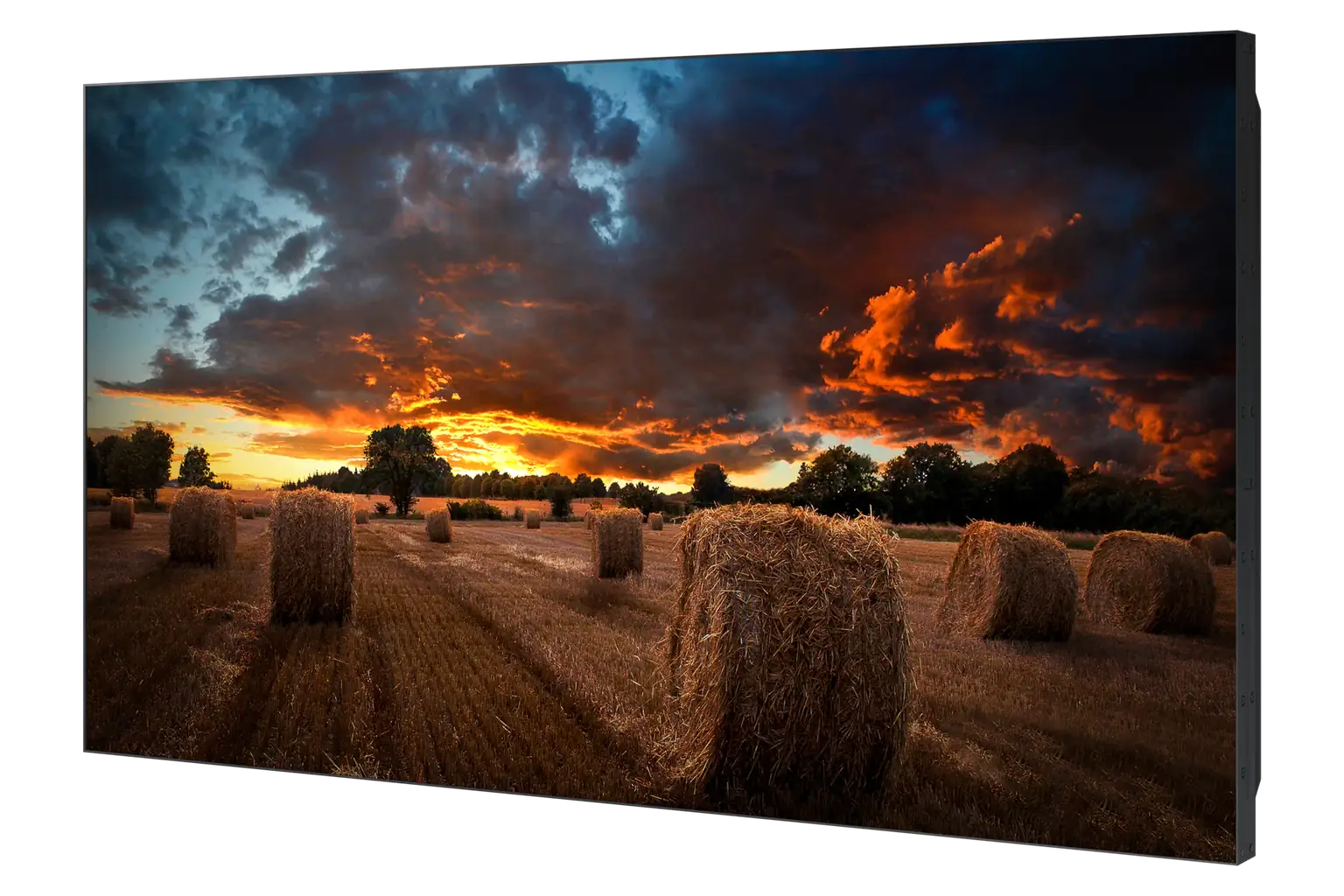

LCD Video Wall Display
VWK-46VT
46-inch IPS panel with 3.5mm bezel-to-bezel width. 500 nit brightness, 178-degree viewing angles, IP5x dust resistance, and 24/7 operation. Built for video wall grids that demand pixel-perfect tile alignment.
Core Capabilities
Six reasons the VWK-46VT tiles together without compromise
Ultra-narrow bezels, IPS colour consistency, 24/7 endurance, and DisplayPort daisy-chain. Every specification in the VWK-46VT is chosen for video wall grid builds that stay running.

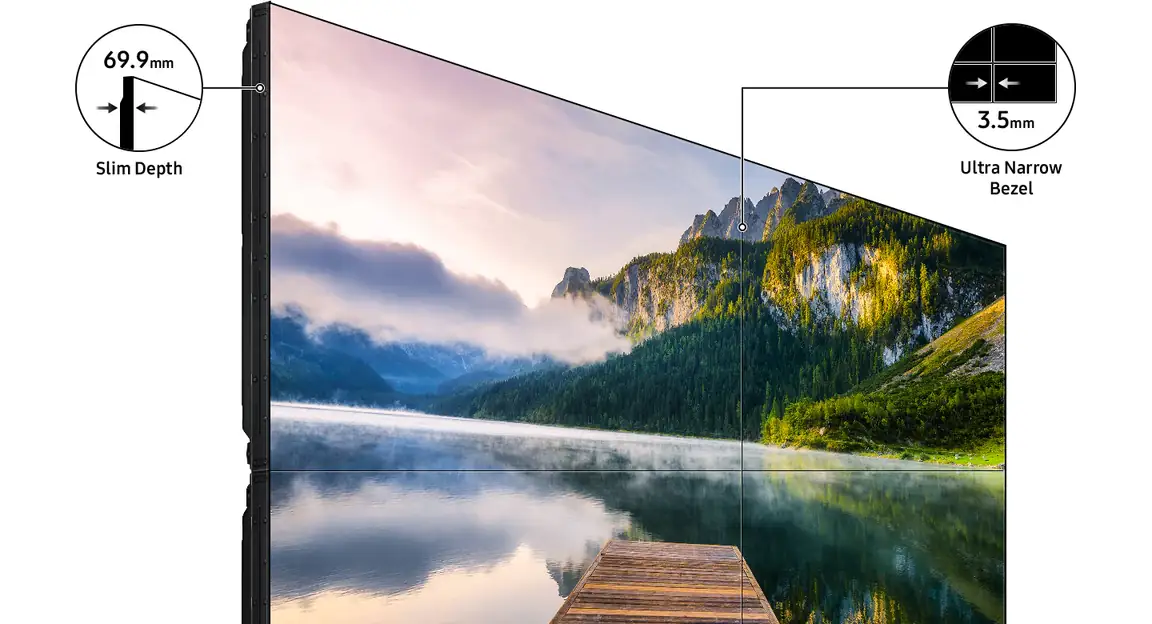

3.5mm Bezel-to-Bezel
Ultra-narrow 3.5mm bezel-to-bezel joins panels in a grid with near-invisible seams. Tiled across a 3×3 or larger configuration, the lines between panels disappear into the content.

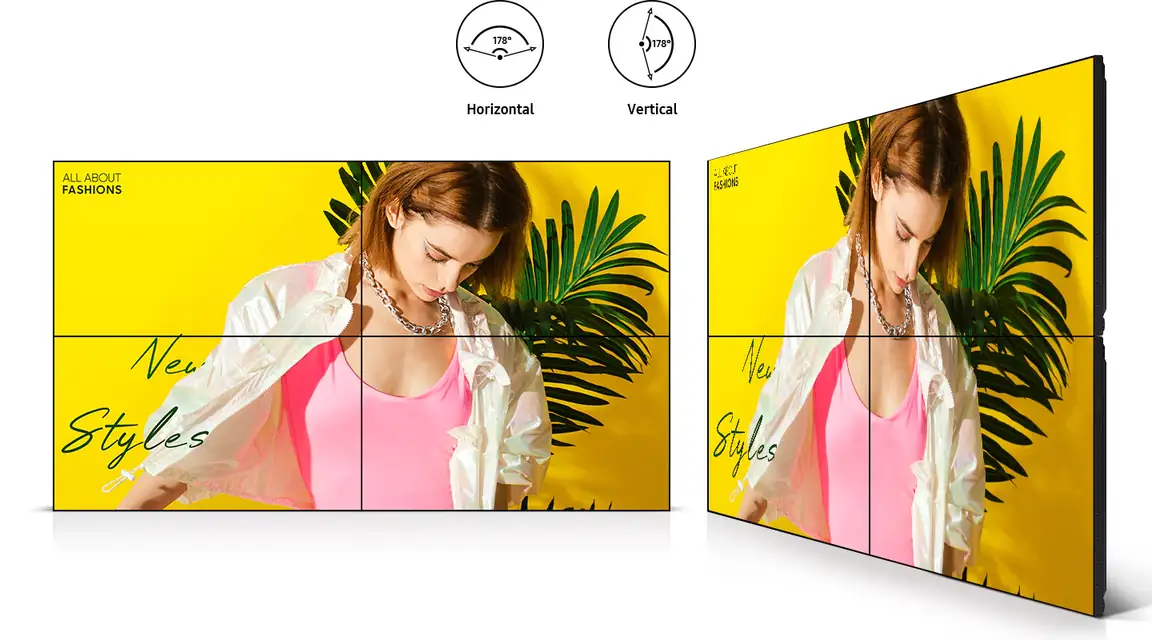

178° IPS Viewing Angles
IPS technology delivers consistent colour and brightness at any position in the room. No colour shift at oblique angles. No brightness fall-off at the edges. Useful in lobbies and control rooms where viewers stand anywhere.

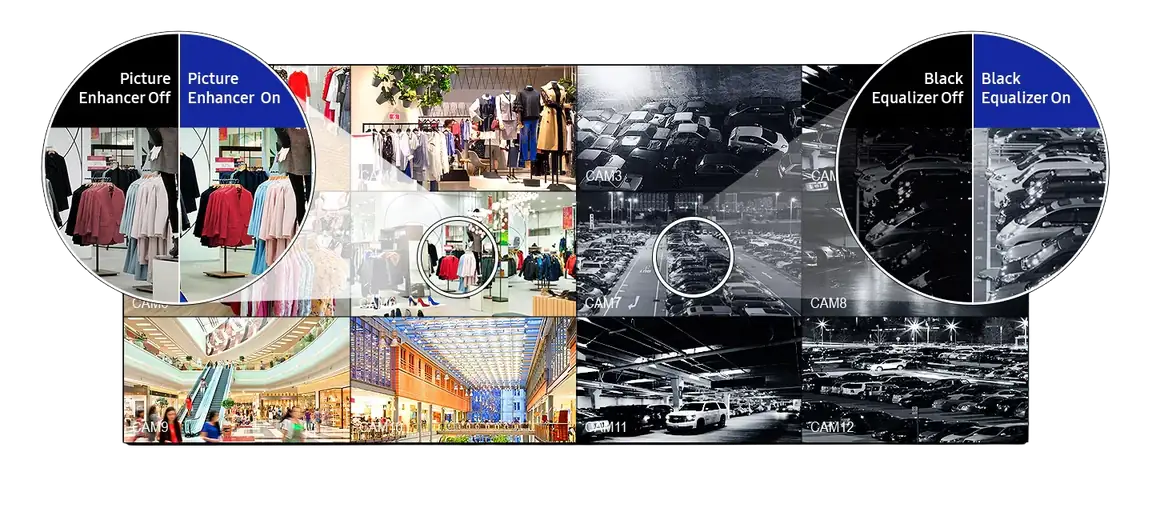

Picture Enhancer & Black Equalizer
Picture Enhancer fine-tunes edge detail and colour depth. Black Equalizer lifts shadow visibility without blowing out bright areas. Content reads cleanly across the full dynamic range of the panel.

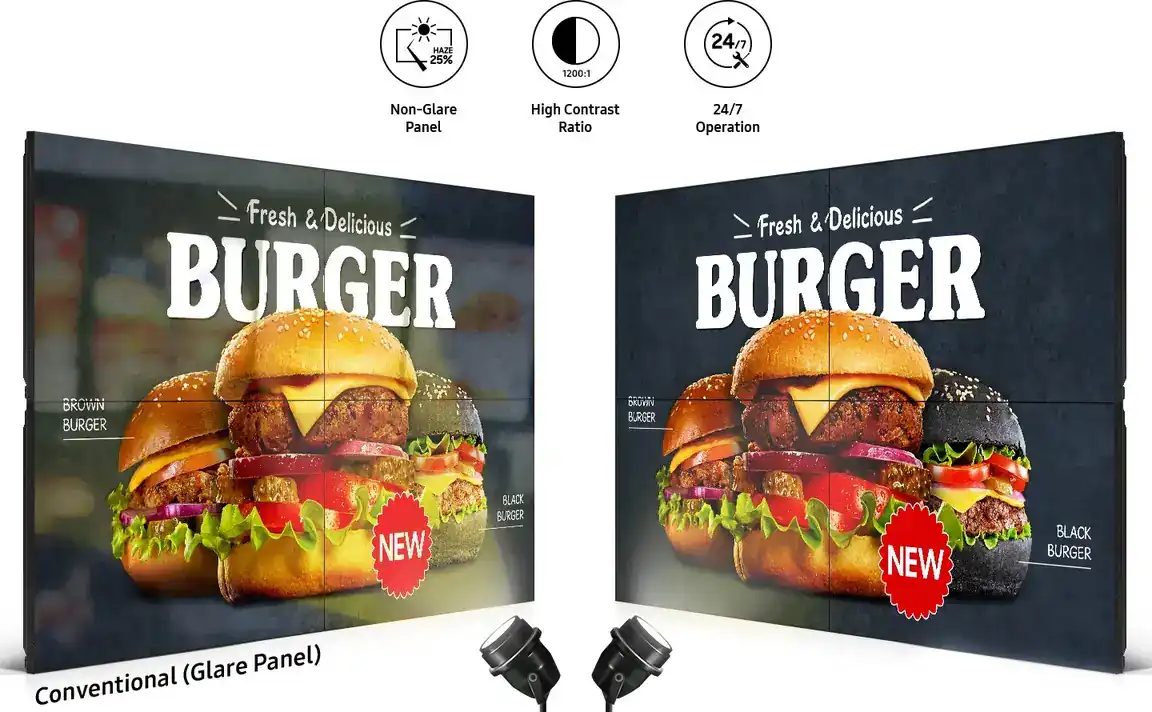

500 nit, 24/7 Rated
Rated for 24-hour continuous operation. At 500 nit, the VWK-46VT holds up in ambient-lit lobbies, control rooms, and retail concourses. Run it all day, every day, without thermal throttling or brightness degradation.
DisplayPort 1.2 Daisy-Chain
DP 1.2 daisy-chain runs multiple panels from a single source output. Fewer cables. No matrix switcher required for standard grid configurations. Cleaner rack and simpler signal path from day one.

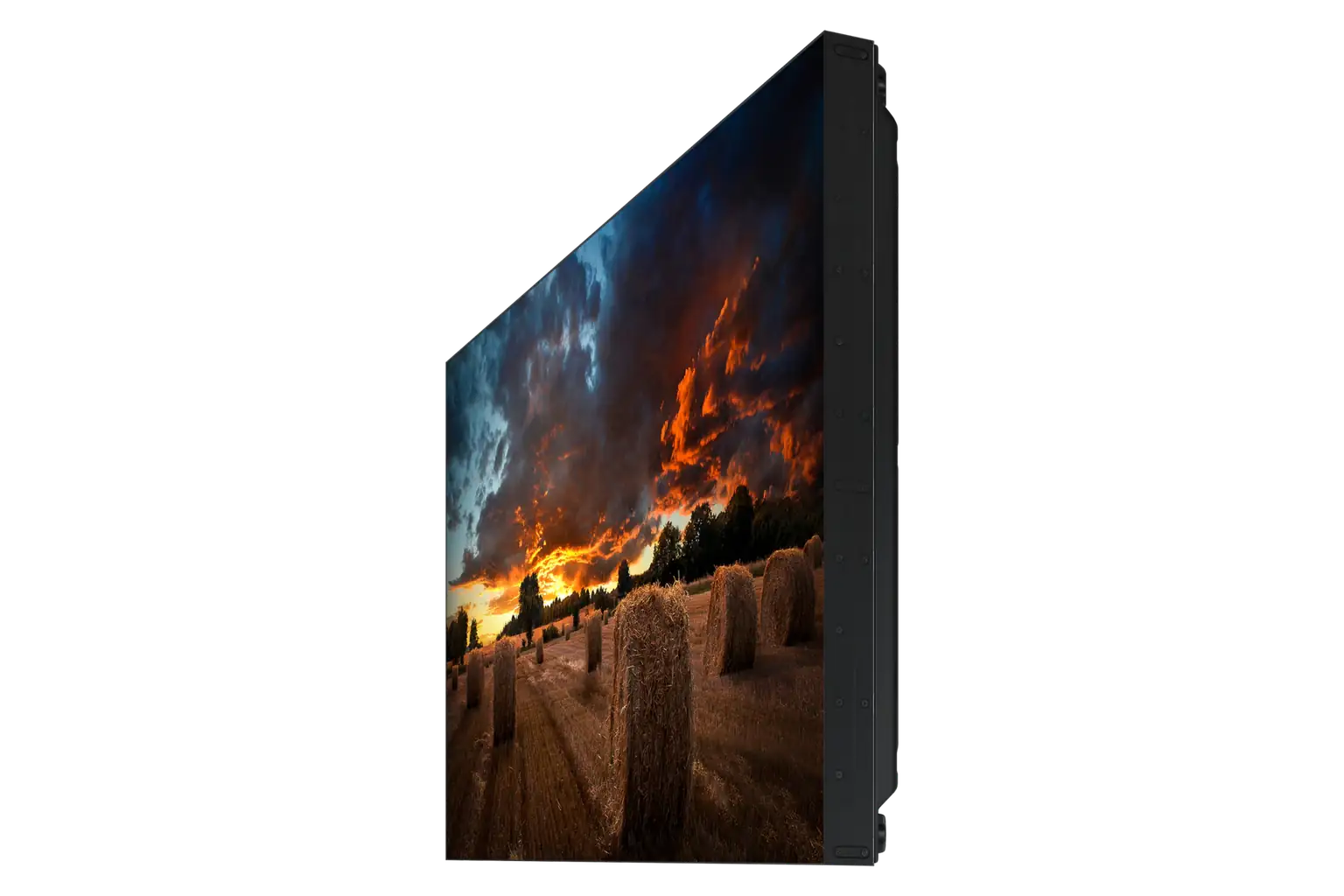

IP5x Dust Resistance
IP5x-rated chassis keeps dust out of the display internals. Designed for commercial environments where air quality is variable and long-term reliability cannot be compromised by particulate ingress.
VWK-46VT vs VWK-55VT
Same series. Two sizes. Match the panel to your wall.
Both models share the same IPS technology, 500 nit brightness, 3.5mm bezel, and 24/7 rating. The choice comes down to grid footprint and viewing distance.
This Model
VWK-46VT
46″ · 1,022 × 577 mm
- Viewing distance: 1.5-5 metres
- Tighter grid for smaller walls
- 15.7 kg per panel
- 160 W max power
- HDMI ×2, DP ×1, DVI ×1
Best for: Lobbies, meeting rooms, retail, and smaller control room grids
Larger Option
VWK-55VT
55″ · Wider footprint
- Viewing distance: 3-8 metres
- More impact per panel in large spaces
- Same 500 nit brightness
- Same 3.5mm bezel-to-bezel
- Same DP 1.2 daisy-chain
Best for: Large lobbies, conference centres, auditoriums, and open-plan spaces
Technical Specifications
VWK-46VT: Full Spec Sheet
Complete technical specifications for the VWK-46VT 46-inch LCD video wall panel.
| Specification | VWK-46VT |
|---|---|
| Screen Size | 46″ |
| Panel Type | IPS |
| Resolution | 1,920 × 1,080 (FHD) |
| Pixel Pitch (H×V) | 0.53 × 0.53 mm |
| Brightness | 500 nit |
| Contrast Ratio | 1,200:1 (Dynamic: 45,000:1) |
| Viewing Angle (H/V) | 178° / 178° |
| Response Time | 8 ms |
| Colour Gamut | 72% |
| Bezel (Bezel-to-Bezel) | 3.5 mm |
| Bezel Width (T/L) | 2.25 mm |
| Bezel Width (R/B) | 1.25 mm |
| HDMI In | 2 (v2.0) |
| DisplayPort In | 1 (v1.2, Daisy-Chain) |
| DVI In | 1 |
| USB | 1 |
| HDCP | 2.2 |
| Power Consumption | 160 W (Max) / 0.5 W (Sleep) |
| Panel Weight | 15.7 kg |
| Dimensions (W×H×D) | 1,022 × 577 × 69.9 mm |
| VESA Mount | 600 × 400 mm |
| IP Rating | IP5x |
| Operating Hours | 24/7 |
| Operating Temperature | 0°C. 40°C |
| Power Supply | AC 100-240V, 50/60Hz |
Why MediaTile
One Partner for the VWK-46VT: Hardware, Software & Support
MediaTile doesn’t just supply the VWK-46VT. We spec the grid, install the wall, connect it to our cloud platform, and support it for the life of the installation.
01
Cloud Content Management
Learn morePush content to every 46-inch panel in your grid from one browser tab. Schedule playlists, monitor panel health, and update creative remotely, with no on-site visits required.
02
AI Content Designer
Learn moreBuild content sized to the exact pixel dimensions of your VWK-46VT grid using MediaTile’s drag-and-drop designer with built-in AI generation. No external design team required.
03
Smart Scheduling
Learn moreDaypart your content automatically across the grid. Trigger playlists by time, event, or external data feed, then let the platform manage the rotation.
04
Audience Analytics
Learn moreMeasure dwell time and engagement at the 46-inch standard-bezel format without storing personal data. Quantify the return on every tile in the grid.
05
Emergency Alert Ready
Learn moreOverride every panel in the grid instantly via CAP protocol integration. Meets compliance requirements for healthcare, government, education, and financial facilities.
06
In-House Installation & Support
Learn moreOur team handles VWK-46VT site survey, tile alignment, and commissioning from start to finish. Phone and email support is never outsourced. Hardware financing available through the Corum Digital Advantage Program.
Complete Solution
Every VWK-46VT connects to MediaTile’s cloud platform. Most LCD suppliers don’t offer that.
Hardware, software, installation, and support from one team. No handoffs. No finger-pointing when the wall needs attention.
- VWK-46VT panels specified and installed by our in-house team
- Rated for 24/7 continuous commercial operation
- Managed through MediaTile's cloud platform, manage content from any browser or device
- Professional installation and project management on every job
- Hardware financing via the Corum Digital Advantage Program
- In-house content creation team available on demand
- Unlimited training with every active subscription
- SOC 2 Type II certified platform, zero-findings audit

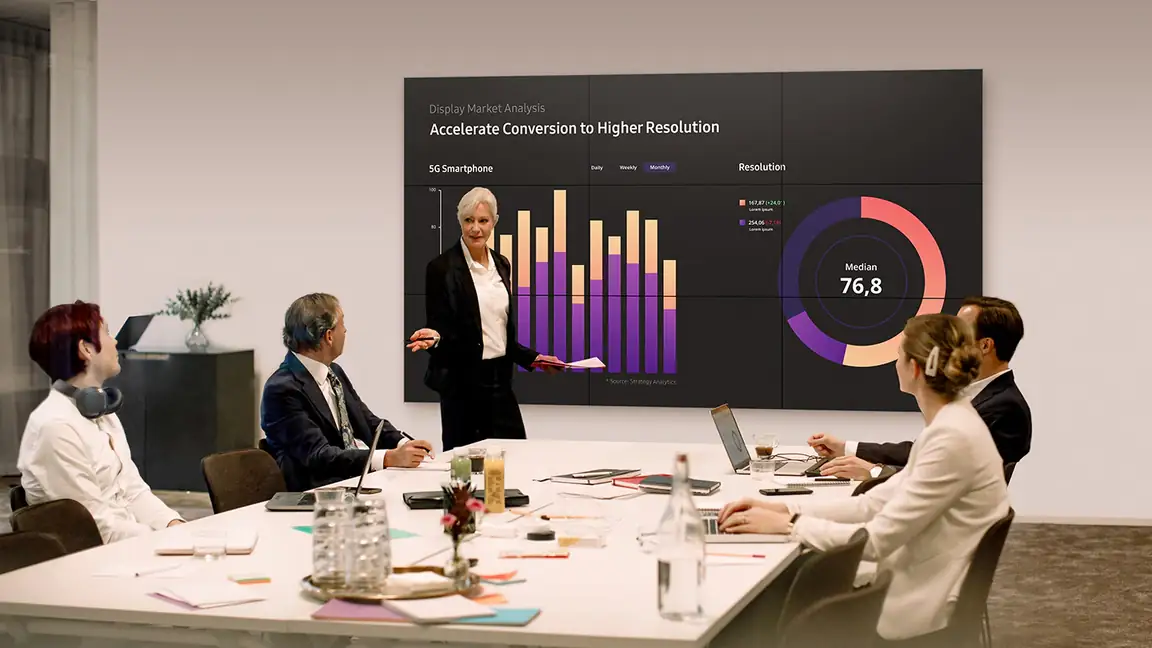

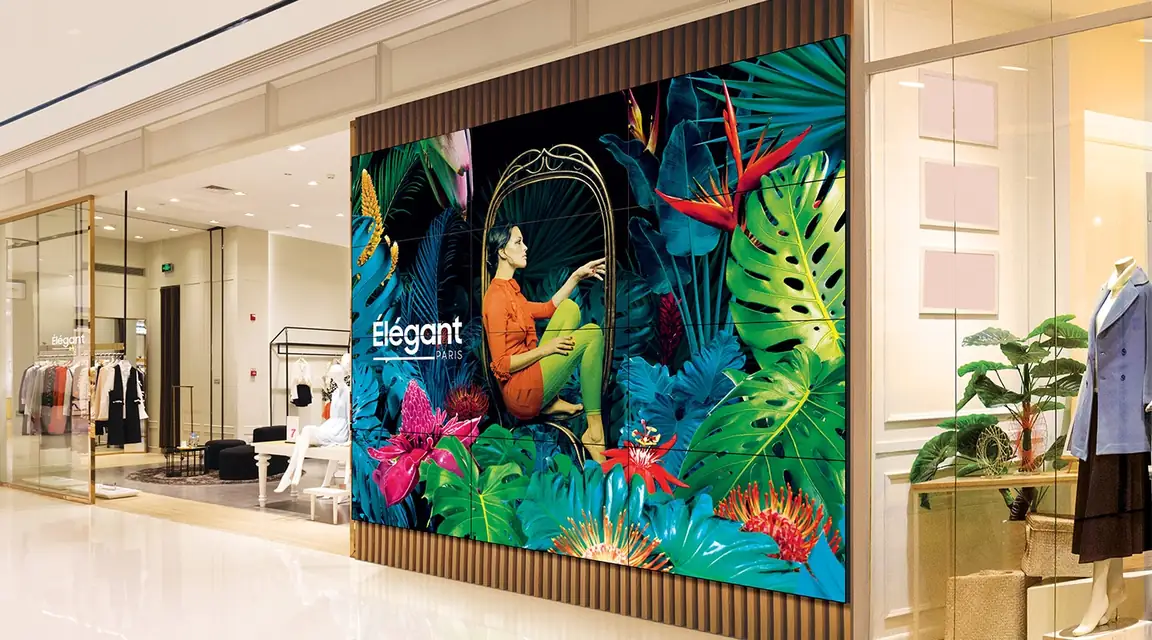

VWK-46VT in Action
LCD Video Wall Installations
VWK-46VT grids running in lobbies, retail spaces, control rooms, and corporate environments.
Explore the Full Range
Other LCD Video Wall Displays
MediaTile carries the complete VWK LCD video wall lineup. Match the panel to your screen size, bezel width, and brightness requirements.

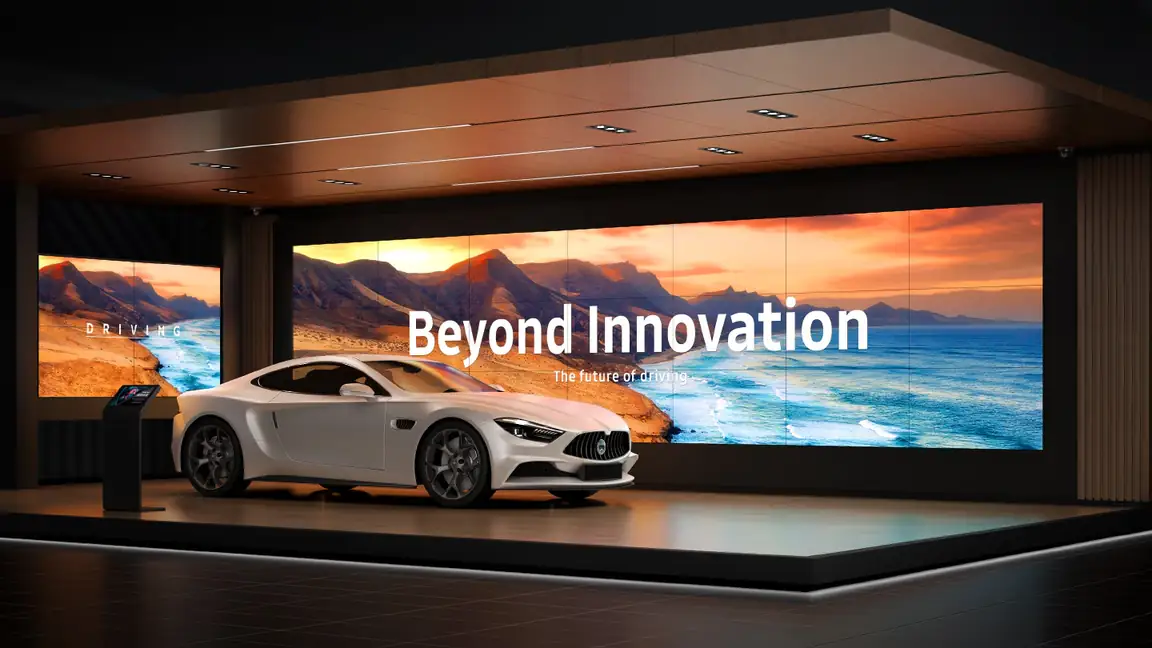

VWK-55VT
55-inch IPS panel, 500 nit, 3.5mm bezel-to-bezel. Same technology as the VWK-46VT scaled to 55 inches for larger lobbies and open-plan installations.
VWK-55VE
55-inch extreme narrow bezel LCD video wall with enhanced brightness and connectivity for demanding commercial environments.

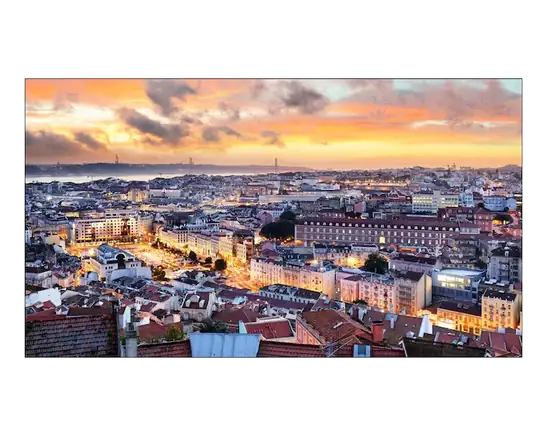

VWK-55HE
55-inch high-brightness LCD video wall panel engineered for environments with high ambient light and demanding continuous operation requirements.
VWK-55VH
55-inch razor-thin bezel LCD video wall with near-invisible seams for premium installations where bezel width is the primary requirement.
FAQ
VWK-46VT questions answered
Common questions from AV integrators, facility managers, and project owners evaluating the VWK-46VT LCD video wall panel.
What is the bezel-to-bezel width of the VWK-46VT?
Can the VWK-46VT run 24 hours a day, 7 days a week?
How does DisplayPort daisy-chain work on the VWK-46VT?
What does IP5x protection mean for the VWK-46VT?
What grid configurations can I build with the VWK-46VT?
What is the difference between VWK-46VT and VWK-55VT?
How do I get a quote for a VWK-46VT video wall installation?
