Interactive Kiosks
Duraline Angled Kiosk 43"-55"
A floor-standing kiosk that puts a 43" or 55" display exactly where people look and reach.
The angled face holds the screen at a comfortable reading and touch height, and the pedestal swallows the media player, the surge bar and every cable, so what the room sees is a finished piece of furniture rather than a screen on a stand.
Service happens from the back, with no need to move the kiosk or touch the glass. Hex-pin fasteners keep the panels shut to anyone without the right driver, and the flat base either stands on its own or bolts down where the floor allows.
Three things it gets right
A profile that fits anywhere
The waisted steel body takes up little floor and reads as part of the room, not as equipment parked in it.
Nothing on show but the screen
An internal shelf carries the player and the cable run, so there is no loose hardware and no trailing power.
Stand it or bolt it
The low rectangular base is stable on its own and takes floor anchors wherever the site calls for them.
What you get in the enclosure
- Waisted body with a curved pull-out display cover at the corner
- Display sits flush to the window, with no visible lip
- Six-outlet surge suppressor, UL and cUL approved, on a 6' cord
- Painted to your colour, wrapped in vinyl, or both
- Arrives pre-assembled, so installation is a lift and a level
- Powder-coat finish that survives cleaning and years of public use
- Gloss black or silver as standard
Gloss black or silver
One enclosure, a dozen jobs

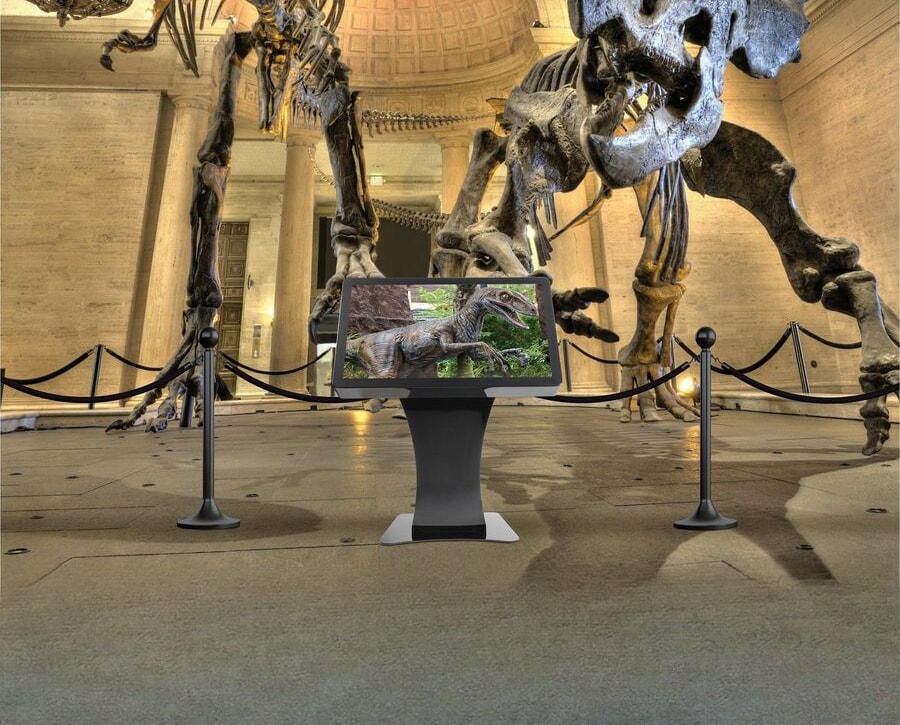

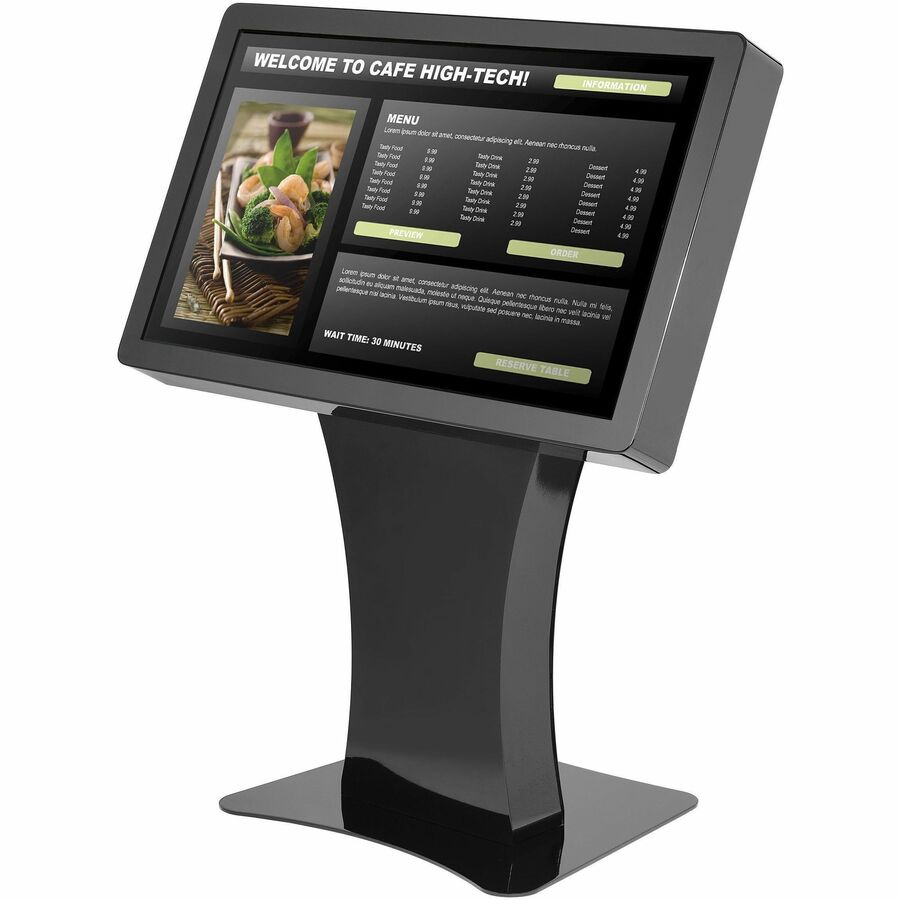

Put a floor map on it and visitors find the room they are looking for. Put a menu on it and the queue orders faster. Put an exhibit guide on it and a gallery answers the question it gets asked all day.
Paired with MediaTile, the same kiosk can switch between all three on a schedule, and the dashboard shows you that it did.
Product specs
Fits most 43" and 55" displays up to 3.50" (89 mm) deep, no larger than 40.4" x 23.9" (1028 x 607 mm) for 43" or 51.0" x 29.5" (1295 x 749 mm) for 55". Cover glass is not part of the enclosure.
| Feature | Specification | 43" | 55" |
|---|---|---|---|
| Display | Display size | 43" | 55" |
| Maximum display size (W x H) | 40.4" x 23.9" (1028 x 607 mm) | 51.0" x 29.5" (1295 x 749 mm) | |
| Maximum display depth | 3.50" (89 mm) | ||
| Orientation | Landscape | ||
| VESA mount | 700 x 400 | ||
| Kiosk | Dimensions (W x H x D) | 41.86" x 53.60" x 18.50" (1063 x 1362 x 470 mm) | 52.45" x 56.15" x 18.50" (1332 x 1426 x 470 mm) |
| Weight | 124 lb (56 kg) | 137 lb (62 kg) | |
| Load capacity | 75 lb (34 kg) | ||
| Material | Steel | ||
| Finish | Powder coat | ||
| Colours | Gloss black or silver | ||
| Base | Flat, free-standing or bolted to the floor | ||
| Security | Hex-pin screw locks | ||
| Power | Six-outlet UL and cUL approved surge suppressor, 6' cord | ||
| Certifications | UL, cUL, RoHS, TAA compliant | ||
| Warranty | 5 years on metal components | ||
| Package | Size (W x H x D) | 48.00" x 60.00" x 40.00" (1219 x 1524 x 1016 mm) | |
| Shipping weight | 186 lb (84 kg) | 205 lb (93 kg) | |
| Contents | Kiosk enclosure, display mounting hardware and installation instructions | ||
| Options | Accessories | HDMI and component video cables, non-glare polycarbonate, decal logos | |

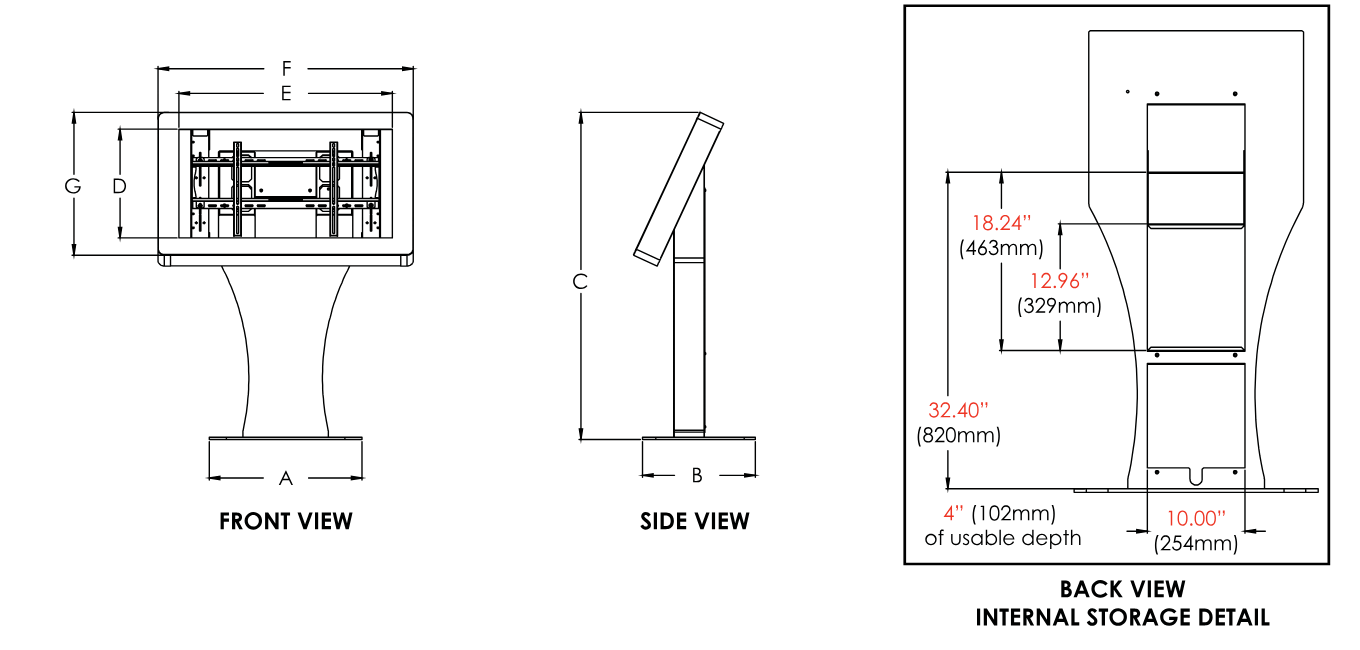

Dimensions
| Dimension | 43" | 55" |
|---|---|---|
| A | 25.00" (635 mm) | 25.00" (635 mm) |
| B | 18.50" (470 mm) | 18.50" (470 mm) |
| C | 53.60" (1362 mm) | 56.15" (1426 mm) |
| D | 21.21" (538 mm) | 26.91" (684 mm) |
| E | 37.58" (954 mm) | 48.05" (1220 mm) |
| F | 41.86" (1063 mm) | 52.45" (1332 mm) |
| G | 25.83" (656 mm) | 31.44" (799 mm) |
FAQ
Duraline Angled Kiosk Questions
What display sizes does it take?
43" and 55" landscape, up to 3.50" (89 mm) deep, on a 700 x 400 VESA pattern. The enclosure does not include cover glass.
How durable is the Duraline Angled Kiosk?
The body is steel with a powder-coat finish, rated for public traffic, and the metalwork carries a five year warranty. Hex-pin screw locks keep the panels closed.
Can it match our brand?
Yes. It comes in gloss black or silver as standard, and it can be painted to a custom colour, wrapped in vinyl or given printed decals.
Where does the media player go?
On a shelf inside the pedestal, with the surge bar and the cable run beside it. Access is from the back, so nothing has to be unbolted to reach it.
Is it accessible?
This model is not built to an accessibility standard. Where a project calls for one, specify the Duraline Angled Accessibility Kiosk in 32", 43" or 50", which is designed to CSA/ASC B651.2:25, the current Canadian standard for accessible self-service kiosks.
