VWK-55VT
55-inch IPS panel with 3.5mm bezel-to-bezel width. 500 nit brightness, 178-degree viewing angles, IP5x dust resistance, and 24/7 operation. The larger format in the VT series for spaces that demand more screen presence.
Six reasons the VWK-55VT performs in demanding commercial spaces
Same IPS technology and 3.5mm bezel as the VWK-46VT, scaled to 55 inches. More visual area per panel means fewer tiles for the same wall size, and greater impact at distance.

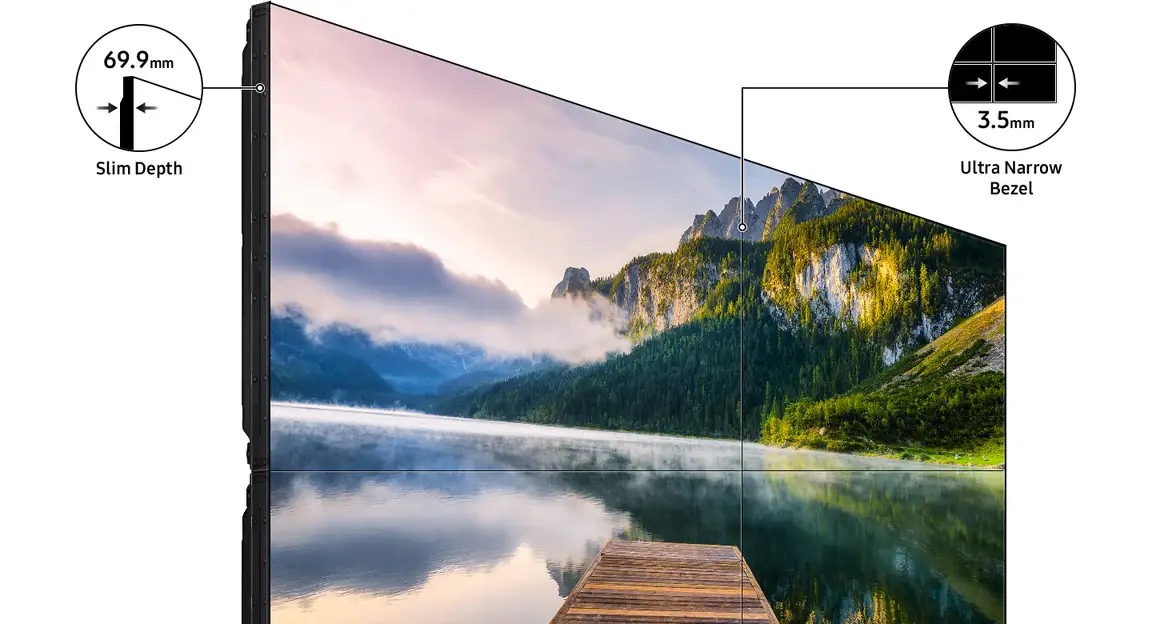

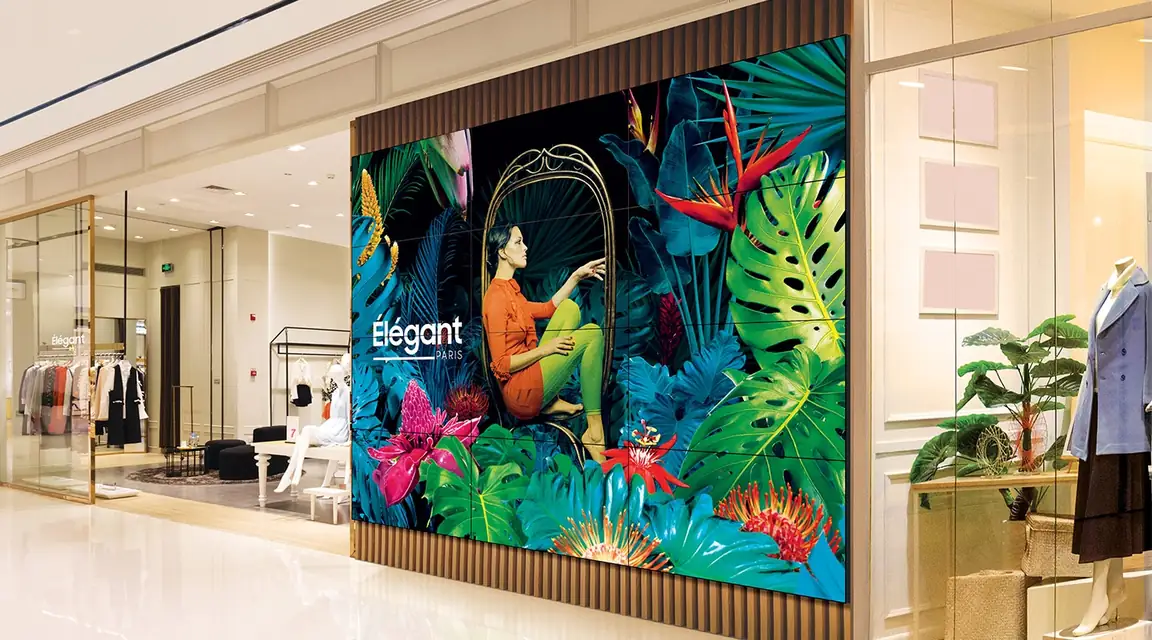

3.5mm Bezel-to-Bezel
Ultra-narrow 3.5mm bezel-to-bezel creates near-invisible seams across a tiled grid. At 55 inches, each panel covers more area, so fewer joins are needed for the same total wall size.

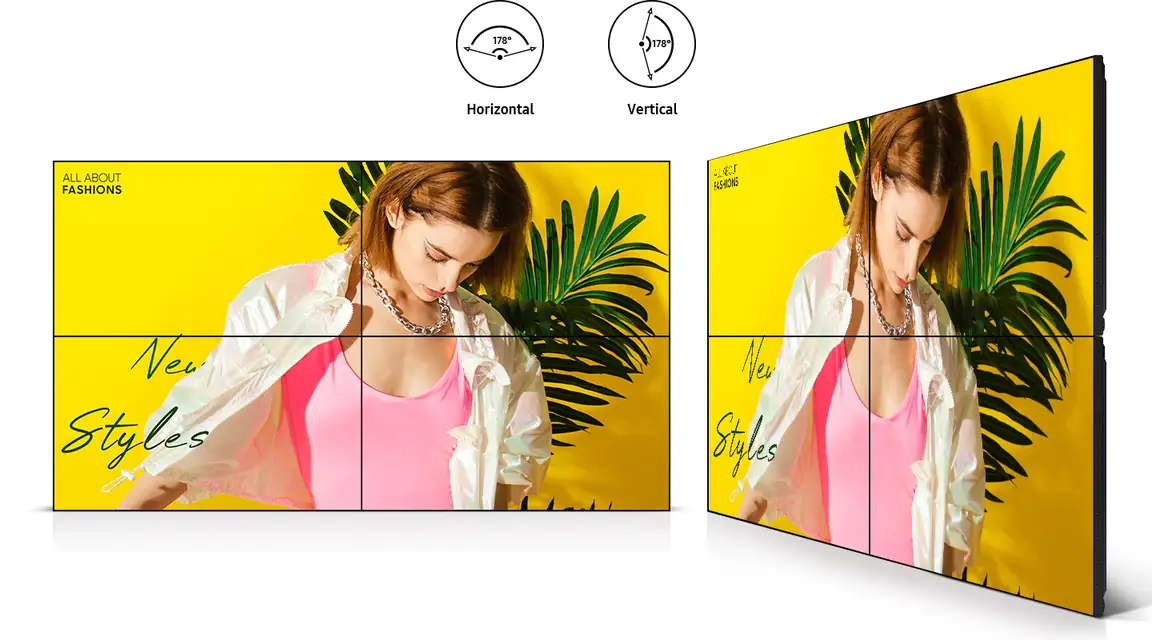

178° IPS Viewing Angles
IPS panel technology maintains consistent colour accuracy and brightness at extreme angles. Content reads clearly from anywhere in the room, including positions well off-axis from the wall centre.

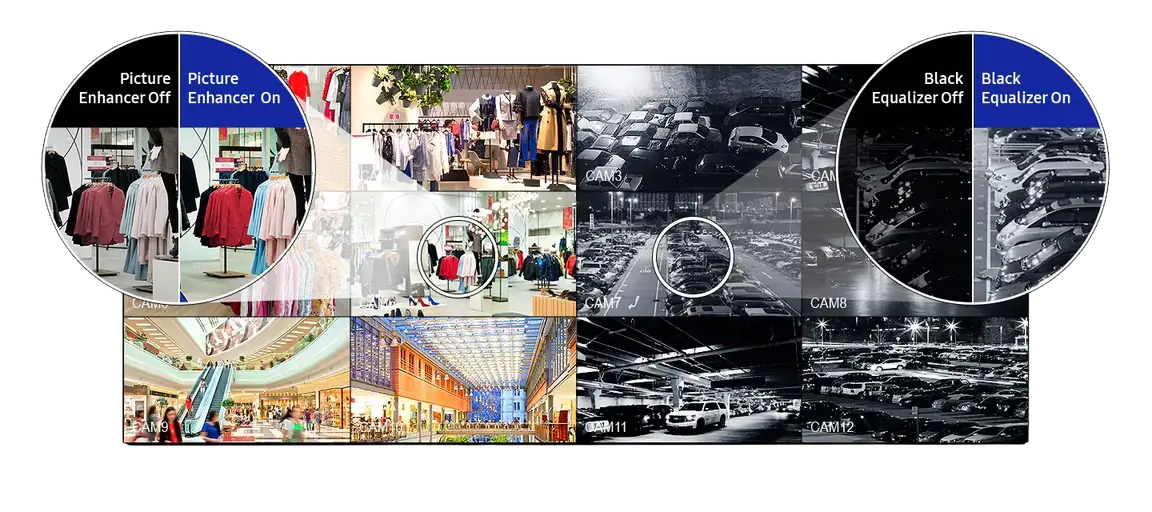

Picture Enhancer & Black Equalizer
Picture Enhancer sharpens edge detail and lifts colour depth. Black Equalizer brings up shadow detail without washing out highlights. Both work at the panel level, no external processor required.

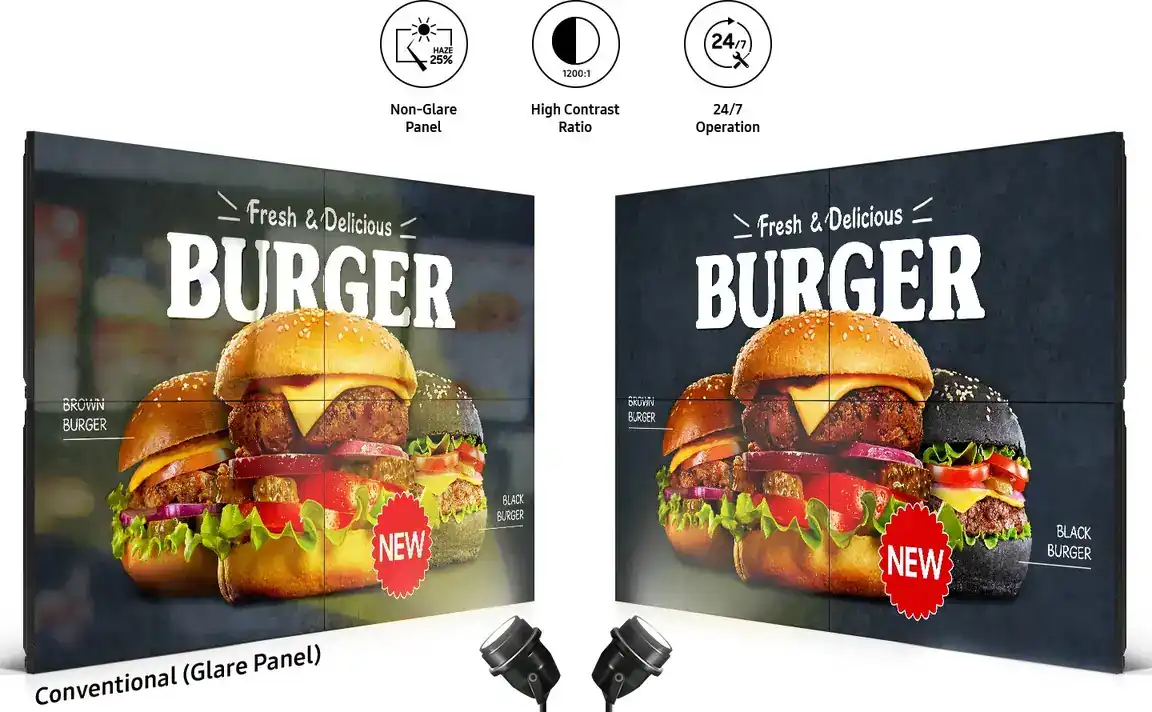

500 nit, 24/7 Rated
Certified for 24-hour continuous operation. At 500 nit, the VWK-55VT maintains consistent brightness in ambient-lit environments. Suitable for lobbies, retail, and control rooms that never switch off.
DisplayPort 1.2 Daisy-Chain
DP 1.2 daisy-chain lets you drive a row of panels from a single source output. Cleaner cabling, simpler signal routing, and no matrix switcher needed for standard grid configurations.

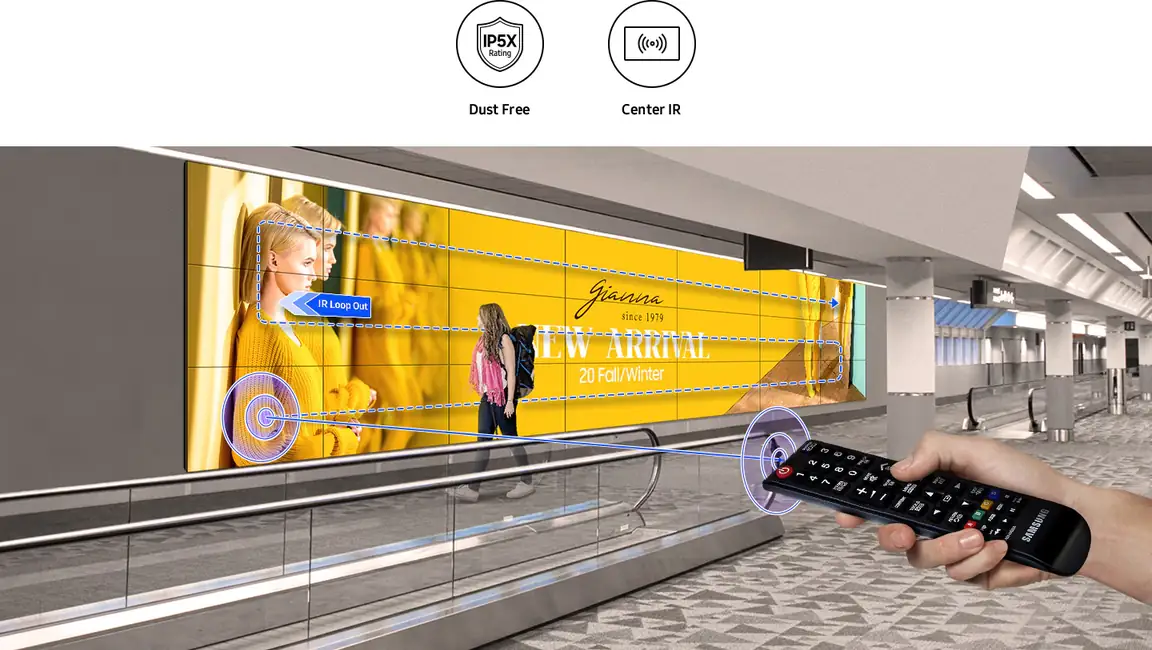

IP5x & Durable Design
IP5x dust-resistant chassis protects display internals in commercial environments. The cabinet design prioritises installation accessibility with a user-friendly form factor for tiled grid builds.
Same IPS technology. Two sizes. Match the panel to your wall.
Both models share the same 3.5mm bezel, 500 nit brightness, IP5x rating, and 24/7 operation. The decision comes down to room size and viewing distance.
VWK-46VT
46″ · 1,022 × 577 mm
- Viewing distance: 1.5–5 metres
- Tighter grid for compact spaces
- 15.7 kg per panel
- 160 W max power
- Same 3.5mm bezel-to-bezel
Best for: Meeting rooms, retail, smaller lobbies
VWK-55VT
55″ · 1,213.5 × 684.3 mm
- Viewing distance: 3–8 metres
- More impact per panel in large spaces
- 21.2 kg per panel
- 220 W max power
- Same 3.5mm bezel-to-bezel
Best for: Large lobbies, conference centres, auditoriums, open-plan spaces
VWK-55VT: Full Spec Sheet
Complete technical specifications for the VWK-55VT 55-inch LCD video wall panel.
| Spécification | VWK-55VT |
|---|---|
| Screen Size | 55″ |
| Type de panneau | IPS |
| Resolution | 1,920 × 1,080 (FHD) |
| Pixel Pitch (H×V) | 0.63 × 0.63 mm |
| Luminosité | 500 nit |
| Rapport de contraste | 1,200:1 (Dynamic: 45,000:1) |
| Viewing Angle (H/V) | 178° / 178° |
| Temps de réponse | 8 ms |
| Colour Gamut | 72% |
| Bezel (Bezel-to-Bezel) | 3.5 mm |
| Bezel Width (T/L) | 2.25 mm |
| Bezel Width (R/B) | 1.25 mm |
| HDMI In | 2 (v2.0) |
| DisplayPort In | 1 (v1.2, Daisy-Chain) |
| DVI In | 1 |
| USB | 1 |
| Consommation d'énergie | 220 W (Max) / 0.5 W (Sleep) |
| Panel Weight | 21.2 kg |
| Dimensions (W×H×D) | 1,213.5 × 684.3 × 73.1 mm |
| VESA Mount | 600 × 400 mm |
| IP Rating | IP5x |
| Operating Hours | 24/7 |
| Operating Temperature | 0°C – 40°C |
| Alimentation électrique | AC 100–240V, 50/60Hz |
Hardware + Software + Support: One Partner
MediaTile doesn’t just supply the VWK-55VT. We spec the grid, install the wall, connect it to our cloud platform, and support it for the life of the installation.
Gestion de contenu dans le cloud
Schedule, update, and monitor all VWK-55VT displays remotely through MediaTile’s cloud platform. Push content to every panel in seconds from any browser, no on-site visits required.
Learn more →AI Content Designer
Create content purpose-built for your video wall resolution using MediaTile’s drag-and-drop designer with AI content generation. No design team required.
Learn more →Planification intelligente
Automate content rotations, dayparting, and event-triggered playlists. Set your schedule once and the platform manages it across every panel in your installation.
Learn more →Analyse d'audience
Measure dwell time, engagement, and audience demographics in real time without storing personal data. Turn your LCD video wall into a measurable business asset.
Learn more →Emergency Alert Ready
Override all displays instantly with life-safety messaging via CAP protocol integration. Meets compliance requirements for healthcare, government, education, and financial institutions.
Learn more →In-House Installation & Support
Our team specs, installs, and supports every VWK-55VT grid. Phone and email support included, never outsourced. Hardware financing available through the Corum Digital Advantage Program.
Learn more →
Every VWK-55VT connects to MediaTile’s cloud platform. Most LCD suppliers don’t offer that.
Hardware, software, installation, and support from one team. No handoffs. No finger-pointing when the wall needs attention.
- VWK-55VT panels specified and installed by our in-house team
- Rated for 24/7 continuous commercial operation
- Managed through MediaTile's cloud platform, manage content from any browser or device
- Professional installation and project management on every job
- Hardware financing via the Corum Digital Advantage Program
- In-house content creation team available on demand
- Unlimited training with every active subscription
- SOC 2 Type II certified platform, zero-findings audit

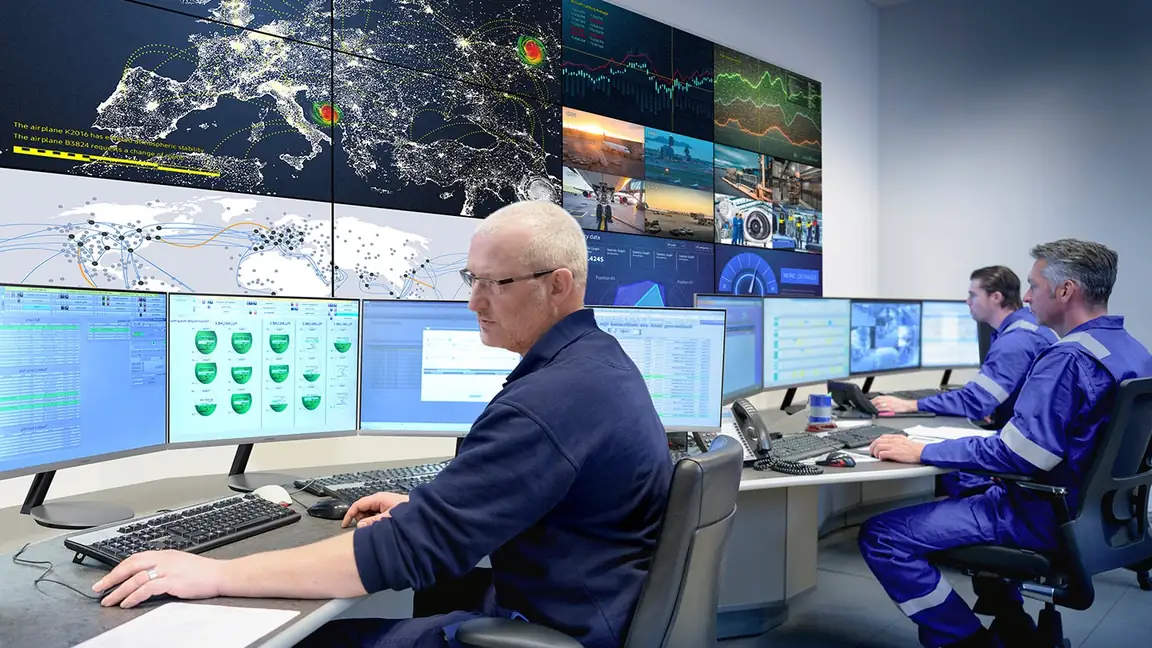

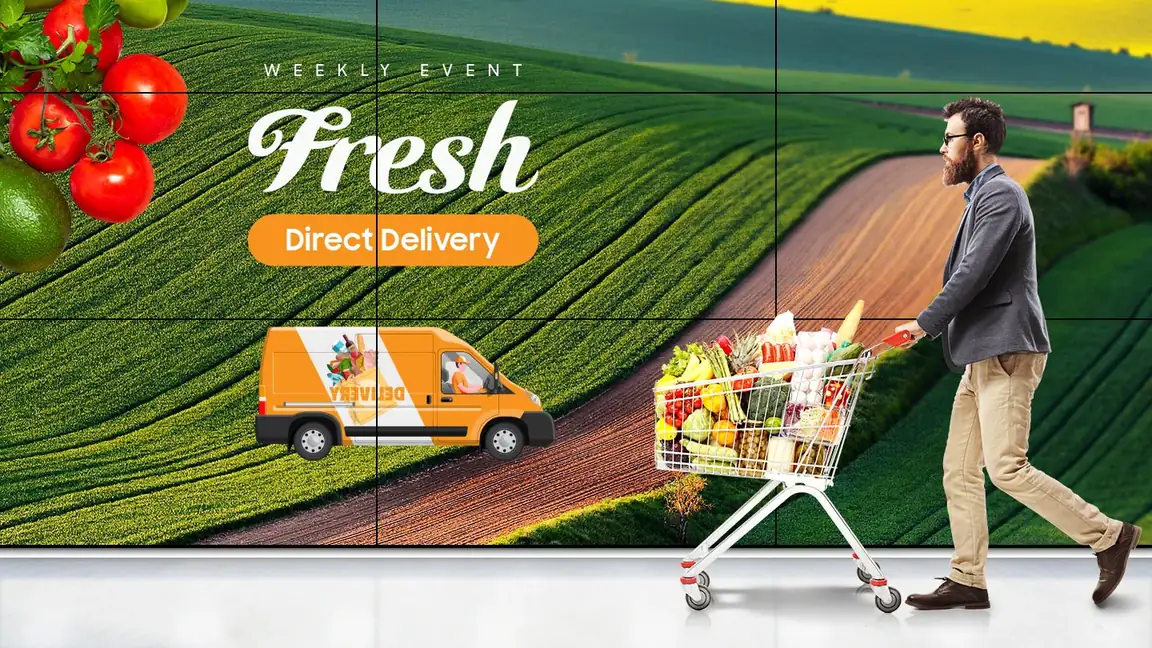

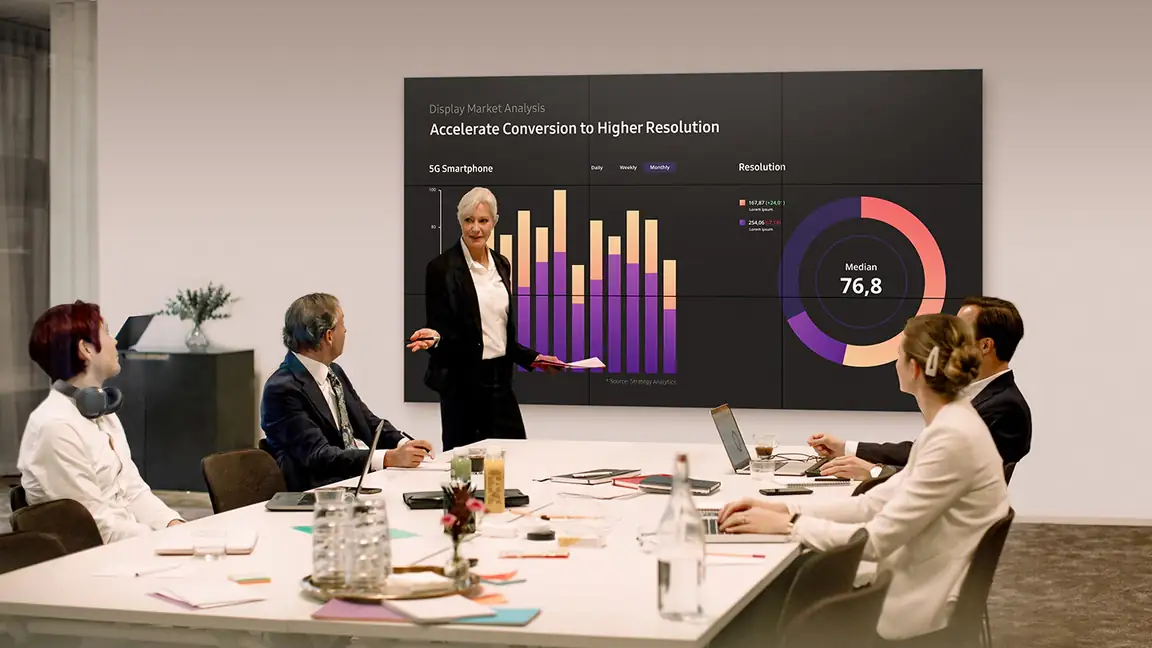

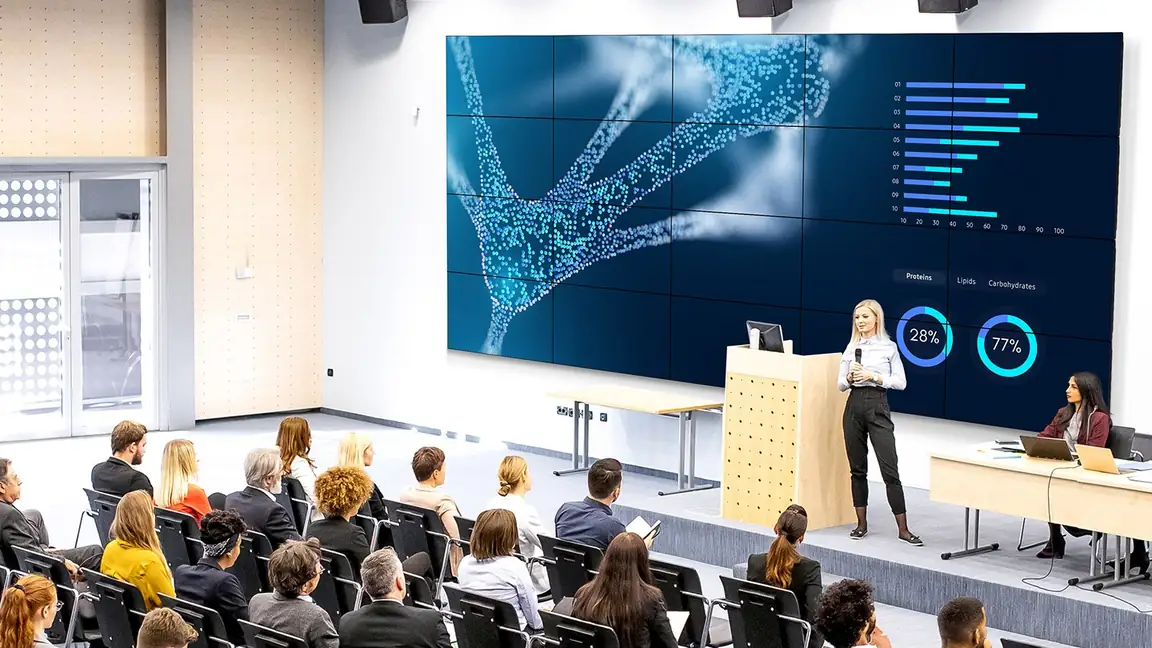

LCD Video Wall Installations
VWK-55VT grids running in lobbies, retail spaces, control rooms, and corporate environments.
Other LCD Video Wall Displays
MediaTile carries the complete VWK LCD video wall lineup. Match the panel to your screen size, bezel width, and brightness requirements.
VWK-46VT
46-inch IPS panel, 500 nit, 3.5mm bezel-to-bezel. The compact format for tighter spaces and closer viewing distances of 1.5–5 metres.
Learn More →

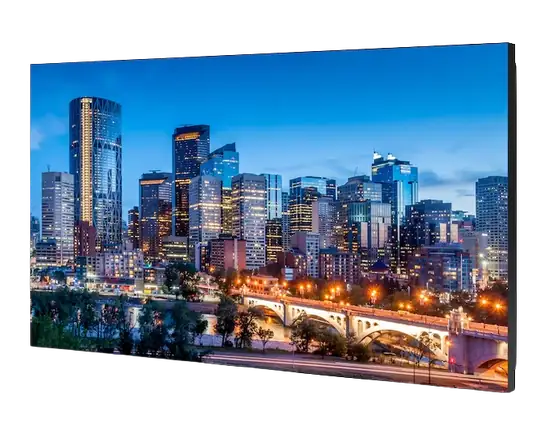

VWK-55VE
55-inch IPS, 500 nit, 1.74mm bezel-to-bezel. Extreme narrow bezel for installations where the join between panels must be as small as possible.
Learn More →

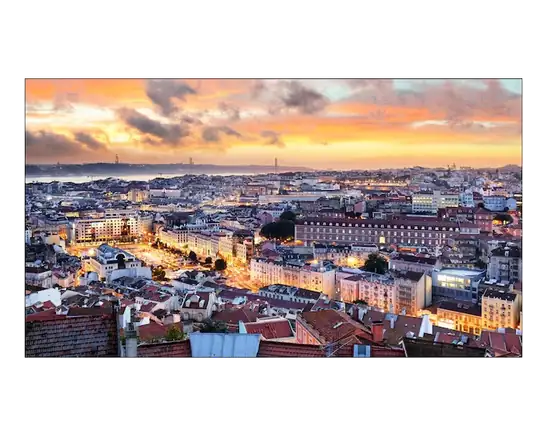

VWK-55HE
55-inch IPS, 700 nit, 1.74mm bezel-to-bezel. Extreme narrow bezel with higher brightness for environments with strong ambient light.
Learn More →

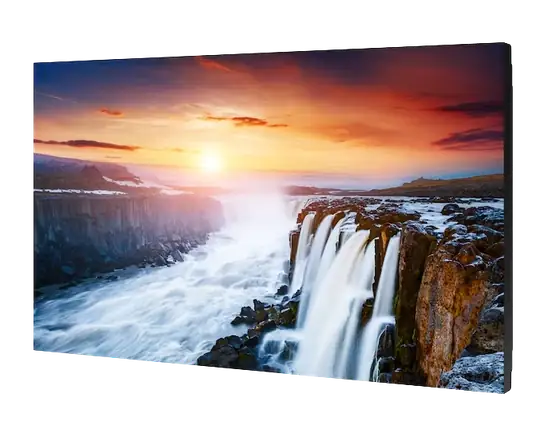

VWK-55VH
55-inch IPS, 700 nit, 0.8mm bezel-to-bezel. Razor-thin near-invisible seams for premium installations where bezel width is the primary specification.
Learn More →VWK-55VT questions answered
Common questions from AV integrators, facility managers, and project owners evaluating the VWK-55VT LCD video wall panel.
