DVNS Series
Engineered for outdoor brightness and durability. The DVNS delivers 10,000 nit peak brightness, IP65/IP54 weatherproof protection, and four pixel pitch options for sports venues, outdoor advertising, events, and high-visibility signage.
DVNS Series Built for Extreme Brightness and Weather
With 10,000 nit peak brightness, IP65/IP54 weatherproof construction, and double waterproof G-TILE module protection, the DVNS thrives in outdoor environments where indoor displays fail.
10,000 Nit Peak Brightness
Bright enough for direct sunlight on stadiums, outdoor malls, and event venues. 10,000 nits ensures content remains vivid and readable even in high-ambient outdoor light, without fading under intense UV exposure.

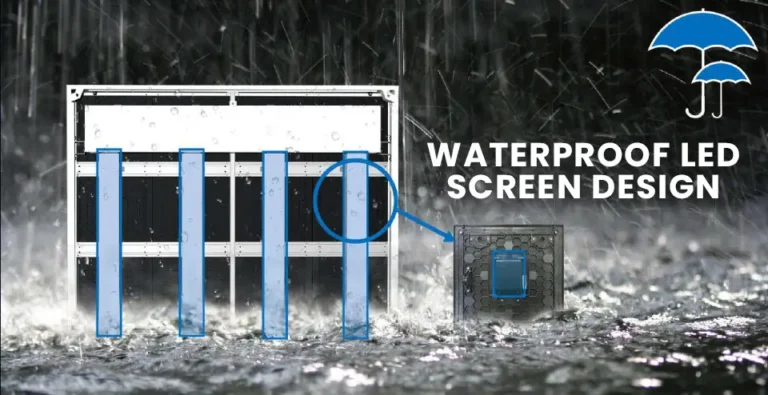

IP65/IP54 Weatherproof Design
Front protection (IP65) and rear protection (IP54) shield against rain, dust, and moisture. Double waterproof enclosure combined with G-TILE module protection means the DVNS handles harsh outdoor conditions without degradation.

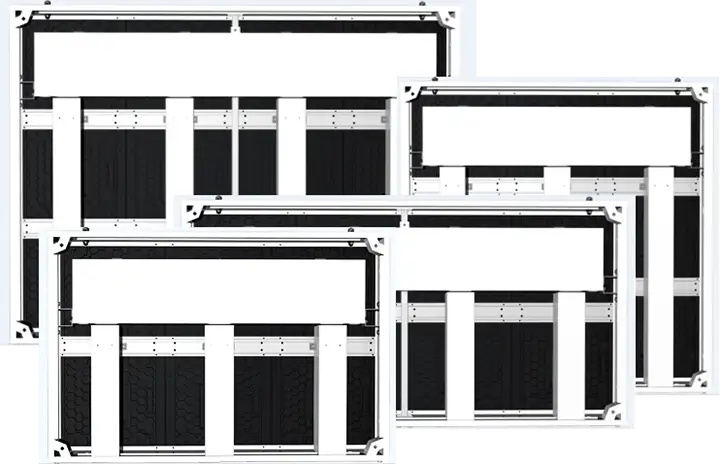

Four Flexible Pixel Pitches
Choose from 5.7mm, 6.66mm, 8.88mm, or 10mm pixel pitch. Smaller pitches deliver finer detail at closer viewing distances; larger pitches cover expansive outdoor spaces at lower cost. All share the same 10,000 nit brightness and weatherproof build.
Energy Efficient at Scale
25% lower power consumption compared to traditional outdoor displays. Aluminum construction is lightweight (31 kg/m²), reducing structural load on outdoor installations while cutting energy costs on large deployments.
Four DVNS Models for Every Outdoor Application
All DVNS models deliver the same 10,000 nit brightness, IP65/IP54 protection, and 3840Hz refresh rate. Your choice depends on viewing distance and venue size.
DVNS 5
5.7mm pixel pitch · Close viewing
- Ideal viewing distance: 8–15 metres
- Highest resolution outdoor option
- 224×168 pixels per panel
- Sports scoreboards, event backdrops
DVNS 6
6.66mm pixel pitch · Mid-range viewing
- Ideal viewing distance: 10–20 metres
- Balanced resolution and coverage
- 192×144 pixels per panel
- Outdoor advertising, retail displays
DVNS 8
8.88mm pixel pitch · Large venue
- Ideal viewing distance: 15–30 metres
- Large stadium and event coverage
- 144×108 pixels per panel
- Arenas, outdoor festivals, malls
DVNS 10
10mm pixel pitch · Wide viewing
- Ideal viewing distance: 20+ metres
- Largest coverage area per cabinet
- 128×96 pixels per panel
- Highway billboards, mass events
Best for: Cost-effective wide-area coverage
DVNS Series: Complete Spec Sheet
All DVNS models share the same core specifications and weatherproof standards. Differences are pixel pitch and resulting pixel density.
| Especificación | DVNS 5 | DVNS 6 | DVNS 8 | DVNS 10 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 5.7 | 6.66 | 8.88 | 10 |
| Panel Size (mm) | 1280 × 960 × 96 | |||
| Pixels Per Panel | 224 × 168 | 192 × 144 | 144 × 108 | 128 × 96 |
| Material | Aluminum | |||
| Weight (kg/m²) | 31 | |||
| Brightness (nit) | 10,000 (Peak) | |||
| Refresh Rate (Hz) | 3840 | |||
| Gray Scale (bit) | 14–16 | |||
| IP Rating (Front/Rear) | IP65 / IP54 | |||
| Power (Max/Avg, W/m²) | 640 / 213 | 640 / 213 | 650 / 216 | 650 / 216 |
| Installation / Maintenance | Front & Rear Access | |||
| Certification | CE · ETL · FCC | |||
Built to Perform Where Other Displays Fail
The DVNS Series is engineered from the ground up for outdoor extremes. No compromise on brightness, no failure points in humid or wet conditions.
Double Waterproof Enclosure
G-TILE module protection isolates each LED tile. Rain and moisture are shed away from critical components. Tested for continuous outdoor operation in tropical climates, coastal salt air, and high-humidity venues.
Front & Rear Access
Flexible maintenance from either side. No need to remove the entire display for module replacement. Scheduled maintenance can happen with minimal downtime, critical for high-stakes venues.
Aluminum Lightweight Design
At 31 kg/m², the DVNS reduces structural load demands on outdoor mounting systems. Lighter = lower installation cost + longer equipment lifespan + simpler rigging for temporary event setups.
No Fan or Hub Board Required
Passive cooling and integrated control simplify installation, reduce failure points, and improve reliability in dusty or extreme outdoor conditions where fans clog and hubs overheat.
DVNS Series Outdoor LED Displays in Action
From sports stadiums to outdoor shopping malls, the DVNS delivers reliable, bright content in high-stakes outdoor environments where weather and intense viewing conditions test every component.
- Sports venues and stadium scoreboards
- Outdoor shopping mall digital signage
- Event backdrops and concert screens
- Highway and directional advertising billboards
- Outdoor transportation hubs and transit stations
- Theme parks and entertainment venues
- Outdoor brand activations and pop-ups
Explore All MediaTile LED Series
From ultra-fine indoor displays to extreme outdoor brightness, MediaTile's complete LED lineup covers every application and budget.
DVQ Series
Ultra-fine COB Flip Chip, 0.78–1.56mm, 600 nit, Managed through MediaTile's cloud platform. Ideal for corporate lobbies and broadcast studios.
Learn More →
DVY Series
Premium brightness with TUV eye safety, 0.9–1.2mm, 2400 nit, HDR support. Perfect for healthcare and extended occupancy.
Learn More →
DVX Series
Large venue flexibility, 1.95–5.95mm, 4000 nit brightness, 90° corner capability. Built for atriums, arenas, hospitality.
Learn More →
Serie DVK
Compact hospitality display, 1.6–3.2mm, 3500 nit, native 16:9 aspect ratio, 90° corners. For hotels, bars, corporate.
Learn More →DVNS Series: Frequently Asked Questions
Everything you need to know about the DVNS Series outdoor LED display before you deploy.
Ready to Deploy a DVNS Series Outdoor LED Display?
Our team will assess your venue, recommend the right pixel pitch and configuration, and deliver the brightest, most reliable outdoor LED display for your space.
Sales: 888-342-3010 · sales@mediatile.com · ← All Video Walls
